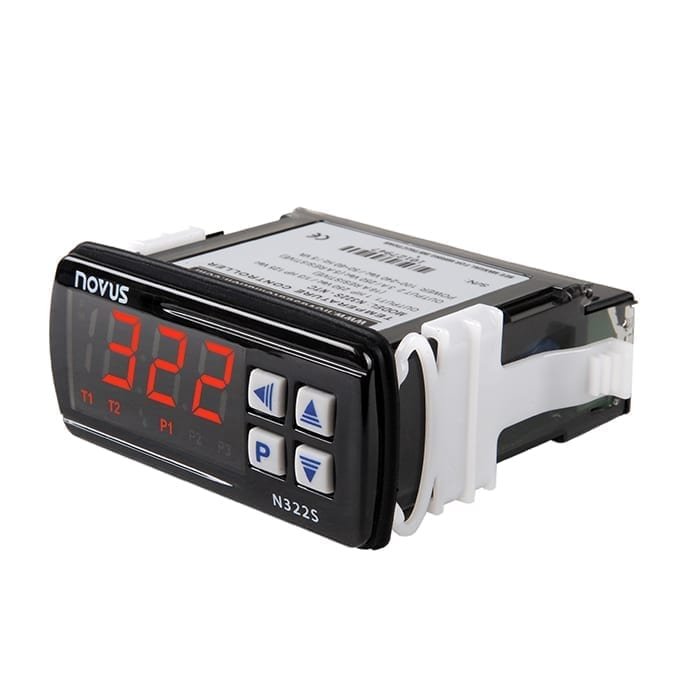

Novus N322 PID Controller J/K/T, 240V, SSR/Relay

Regular price £51.60
Regular price Sale price £51.60
Tax included.
Novus N322 PID Controller J/K/T, 240V, SSR/Relay 33x75, single display, PID and ON/OFF control, 110/240VAC power supply, J/K/T thermocouple input, RELAY/RELAY output. alt_text
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Availability: 94 in stock
SKU: N322JK240/SSR/R-80322P4082
N322 d
Regular price £51.60
Regular price Sale price £51.60

Novus N322 PID Controller J/K/T, 240V, SSR/Relay 33x75, single display, PID and ON/OFF control, 110/240VAC power supply, J/K/T thermocouple input, RELAY/RELAY output.
As distributors of the Novus range, we have a wide range of range of electronic thermostats suitable for heating and refrigeration with defrost applications. Other applications include solar heating, timing and humidity and temperature control upon request.

They are supplied with 1 or 2 independent outputs and can be used as PID or ON/OFF controlSensor input: Pt100 (-50 to 300 °C), Pt1000 (-200 to 530 ºC), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C )
IP65 enclosure frontal protection
Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) and relay SPST-NA: 3 A / 250 Vac
Resolution: 0,1 °C from -19,9 to 199,9 °C
Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Pt1000 / Thermistor) and ±2 °C for Thermocouple
Adjustable hysteresis
Sampling: 1,5 per second
Working temperature: 0 to 50 °C
Power supply: 100-240 Vac/dc (internal) or 12-30 Vdc/ac
Digital communication via RS485 with Modbus RTU protocol(optional)
Dimensions: 75 x 33 x 75 mm
