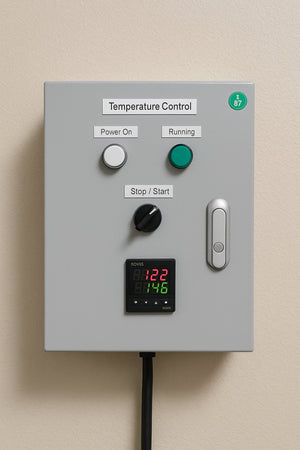

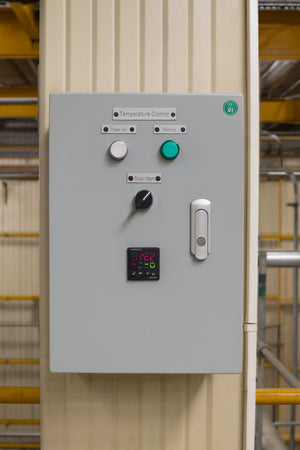

Custom-Built for Precision Process Heating
Our made-to-order Temperature Control Panels are engineered for reliable, precise operation across a wide range of process heating applications. Each panel is fully factory pre-wired, eliminating the need to design or assemble your own system—simply install and connect.
Typical Uses: Chemical coating, circulation heaters, drying and curing ovens, duct heaters, fuel heating, heat-treating, holding tanks, paint curing, thermoforming, and waste-reduction systems.
Key Features:
-
Choice of advanced temperature controllers (N1030 PID or N1050 process controller) with dual display and auto-tune
-
Start/stop rotary switch
-
Circuit breaker or fused disconnect options with high-level overcurrent protection (up to 200 kA)
-
Main & heater power up to 600 VAC three-phase
-
High-limit safety contactor, power-on indicator lamp
-
Fused control transformer, labelled terminal blocks
-
Hardwired power and sensor connections
-
Ventilation fan, filter, or ambient heater options
-
Audible/visual alarm capability
-
Optional twist-lock or jack-panel external connections
Heater Power Output:
Solid state relays per fused sub-circuit, available from 50A to 100A, suitable for circulation heaters, duct heaters, and other resistive loads. Systems available with SCR controls, SSRs, or mechanical contactors.
