Harting Type Aviation Connector Han M/F 5 Pin 10A 600V
Regular price
£25.00
Regular price
£0.00
Sale price
£25.00
Unit price
Tax included.
Harting Type Aviation Connector Han M/F 5 Pin 10A 600V with M10 cable gland.
Couldn't load pickup availability
Availability:
In stock
SKU:
HARTING5PIN10A
Collections:
Regular price
£25.00
Regular price
£0.00
Sale price
£25.00

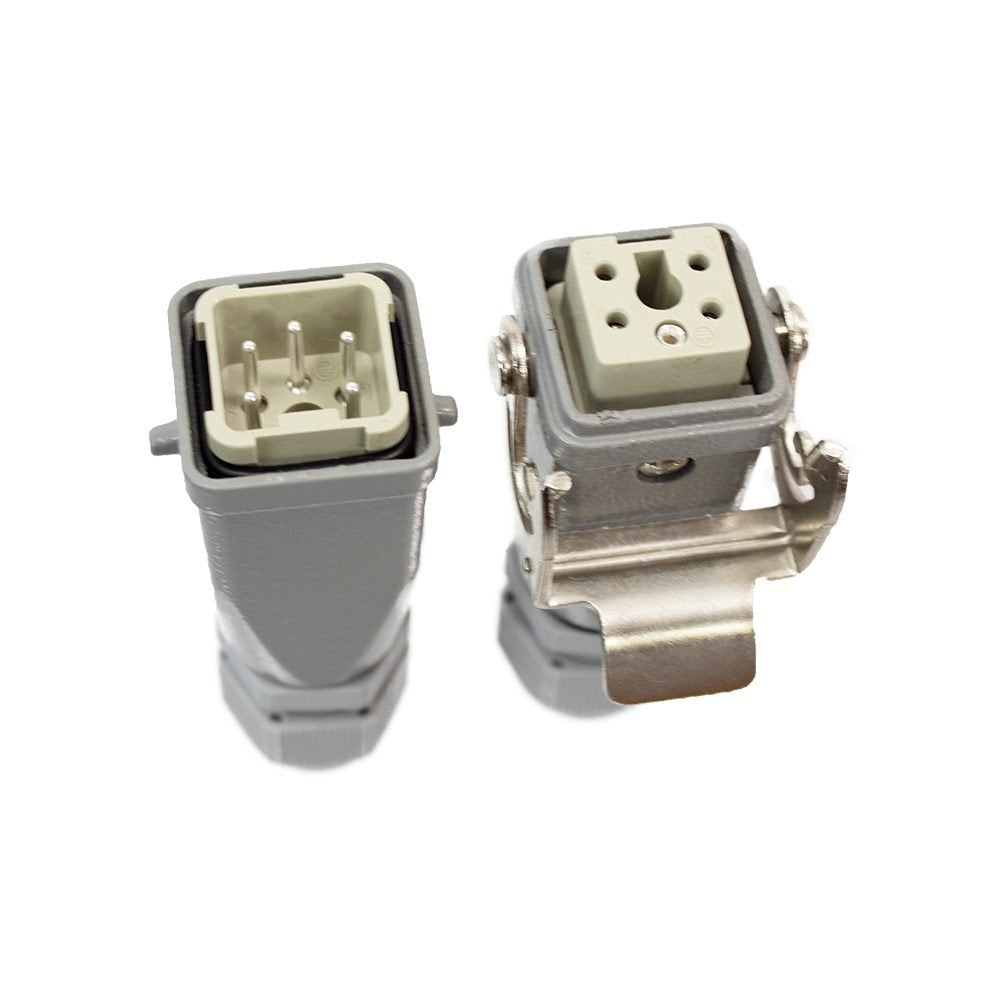

This Harting-type Han 5-pin aviation power connector kit includes male and female plugs for connecting an electrical power supply. Rated at 10A and 600V, it combines an alloy enclosure with a quick-release latch to help keep the connection secure.
Key features
- Male and female connector components supplied together.
- Alloy housing helps protect the connection against crushing.
- Quick-release latch for a secure, releasable connection.
- NBR seal ring helps protect against dust and moisture.
- Straight cable-mounted design with cable gland.
Connector specifications
| Connector type | Harting type, HAN |
|---|---|
| Kit contents | Male plug and female plug |
| Number of pins | 5 |
| Pin configuration | 3+PE (listed configuration; confirmation required for the 5-pin version) |
| Case size | 3A |
| Mechanical mounting | For cable |
| Cable gland | Included |
| Orientation | Straight |
| Electrical mounting | Snap-on (Quick Lock) |
| Gland thread | M5-M10 (PG11), as listed |
| Gasket material | NBR |
| Connector series | Han Kit |
| Enclosure material | Zinc alloy |
| Current rating | 10A |
| Rated voltage | 600V |
| Insert mounting | 1 screw (21 x 21mm) |
| Wire cross-section | 0.5–2.5mm² |
| Wire termination | Screw connection |
Check before ordering
Please confirm the cable-gland specification before ordering: the gland thread is listed as M5-M10 (PG11). Please also confirm the pin arrangement: this 5-pin listing gives a configuration of 3+PE.
