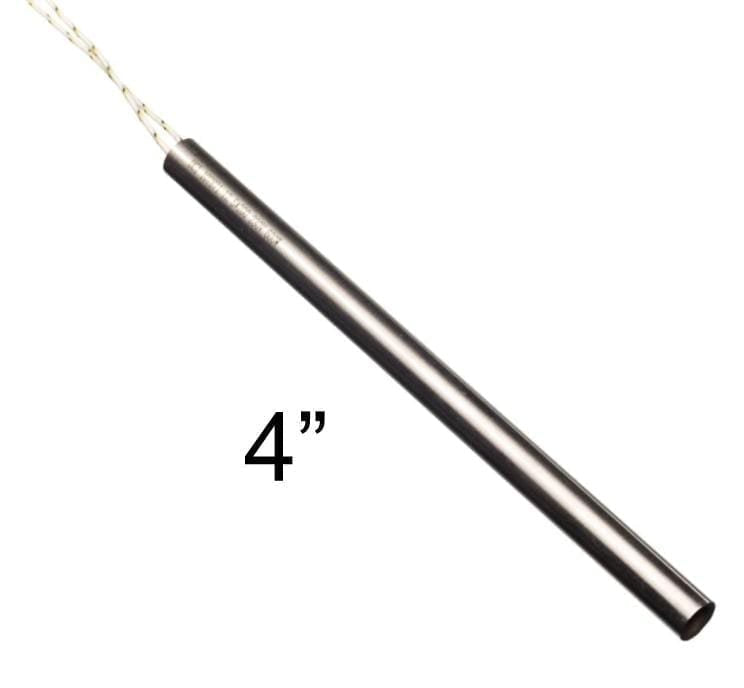

Cartridge Heater 3/8" x 4" 350w 240v, 200mm fibreglass leads.
Cartridge Heater 3/8" x 4" 350w 240v available from stock, fibreglass leads 200mm.
Other designs are available on request. The Imperial equivalent size is 10mm, click here for stock sizes.
Diameter Tolerance: 0.02/0.06mm
Unheated zones: Top 6-15mm, bottom 5-10mm
Wattage density: 30W/cm
Wattage tolerance: +5% -10%
Wattage zones: Yes
Thermocouples/PT100: Yes
Sheath material: 304-321
Conductor material: NiCr8020
Sheath temp: Max 700 C
Supplied as high watt densities as standard for the most demanding of applications. Cartridge heaters are also available as medium and low watt options. We offer them with different wire connections and termination options. They can be supplied with integrated thermocouples and various heating zones over the length.
