Two-Zone Temperature Control Panel – Single or Three Phase

The two-zone temperature control panel is engineered for precise control and reliability in single heating circuit applications. This product is ideal for a broad spectrum of process heating tasks, making it a perfect choice in both industrial and commercial settings. Available in both single-phase and three-phase configurations, the panel ensures flexibility and compatibility with various heating systems.

Key Features

• Two Heating Zone Control: This feature allows for the accurate regulation of two separate heaters or heating circuits, enhancing efficiency.
• Single-Phase or Three-Phase Options: Offers versatility in operation, suitable for specific power needs and various heater types.
• Output Type: Equipped with a solid-state relay output rated at 50A (max operating load per zone 25A), ensuring dependable performance.
• Input Type: Utilises Type K thermocouples for precise temperature input measurements.
• Advanced Temperature Controller: The panel features PID or process controller options along with a dual digital display, auto-tuning, and a user-friendly, bright interface for ease of use.
• Built-In Safety Protection: Designed with a high-limit safety contactor, overcurrent protection, and a power-on indicator, ensuring operational safety.
• Factory Pre-Wired Design: The product comes fully assembled and pre-wired for quick installation without the need for complex setup processes.
• Durable Industrial Build: This panel is suitable for a range of heating applications, including circulation heaters, duct heaters, immersion heaters, and tank heating systems, addressing various resistive loads.

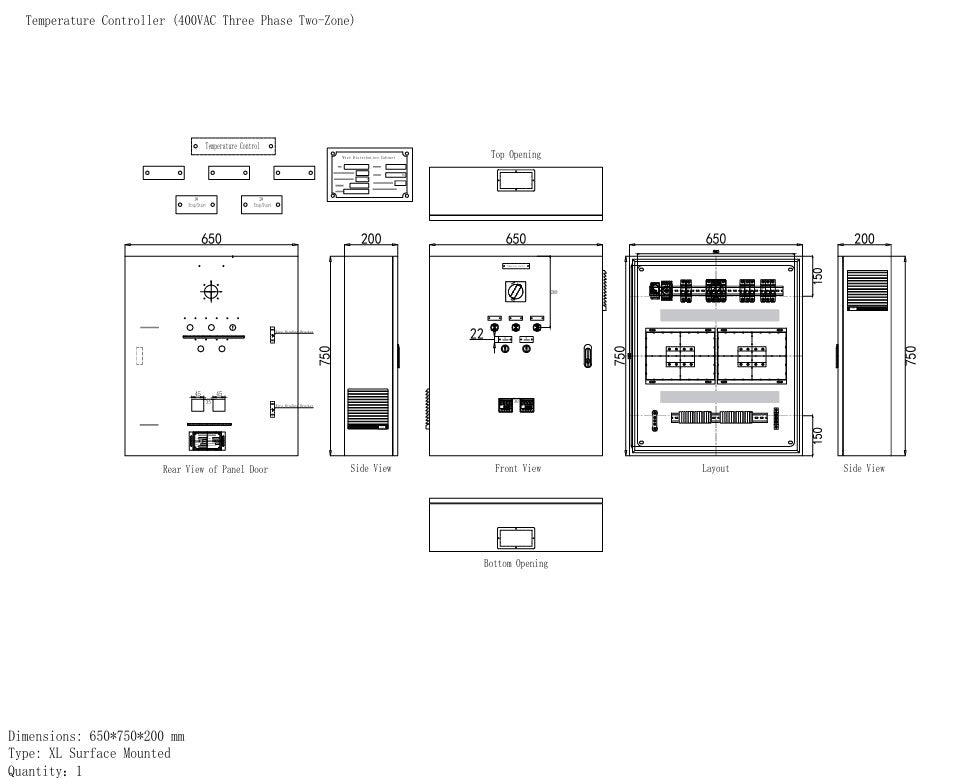

• Panel Dimensions: Single-phase dimensions are 500x250x900mm and for three-phase, 650x200x750mm.

Applications

This two-zone temperature control panel excels in single-zone heating applications across various industrial processes such as tanks, ovens, dryers, and thermoforming operations. Its reliable design promotes effective temperature management for general temperature-controlled equipment, making it a must-have for enhancing process efficiencies.
