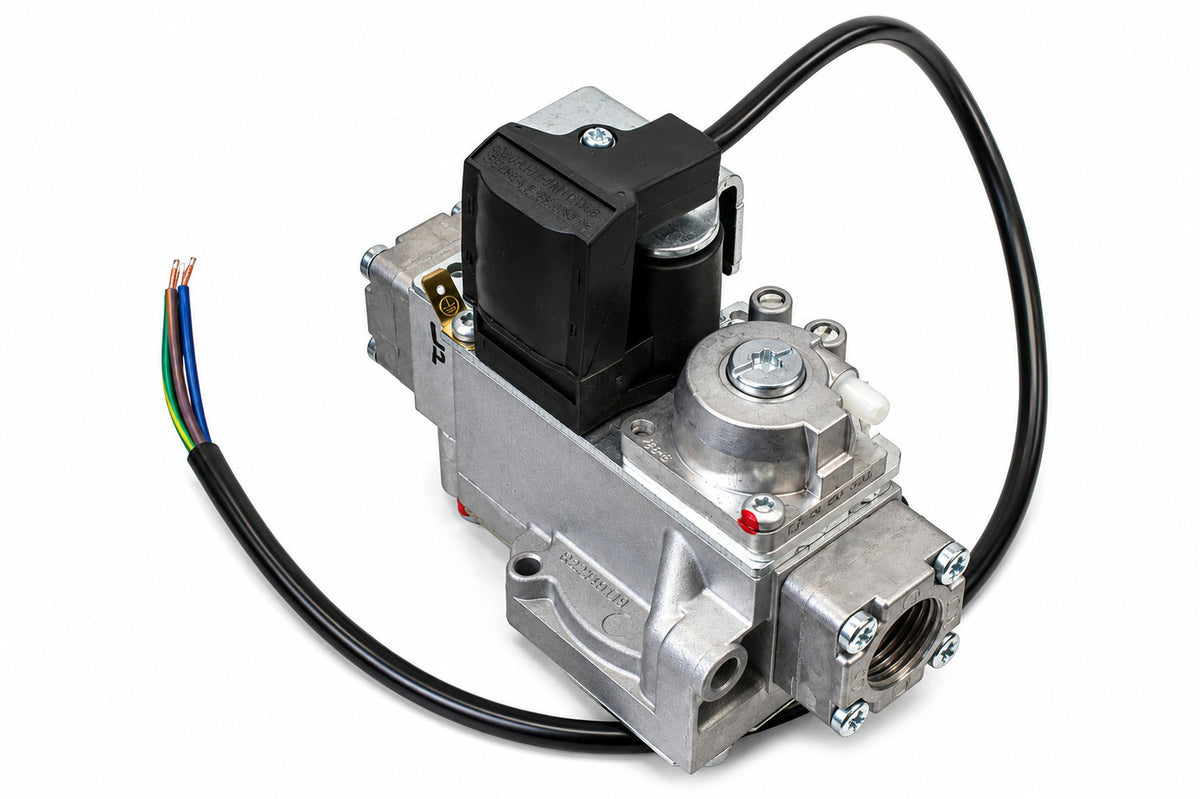

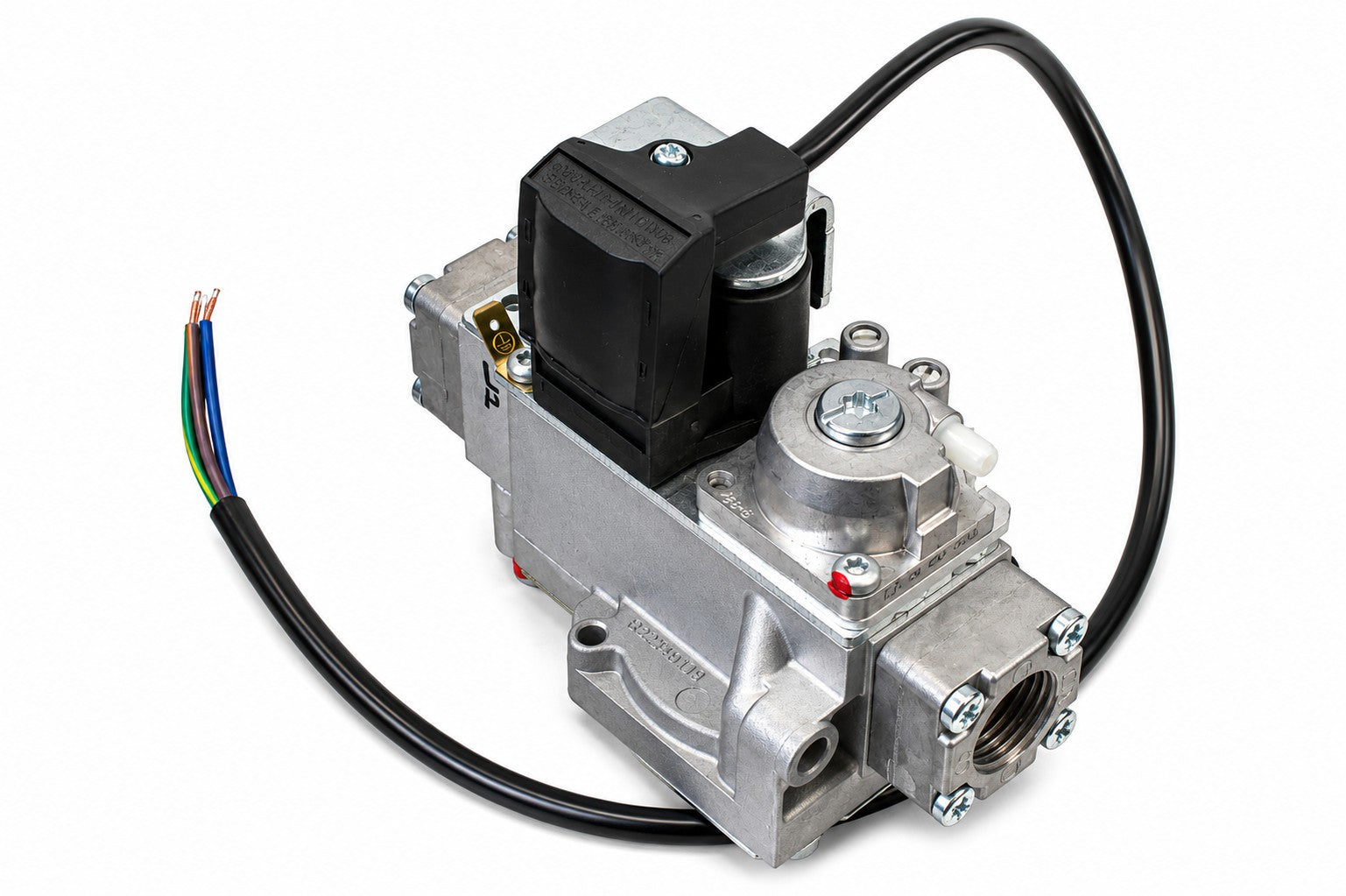

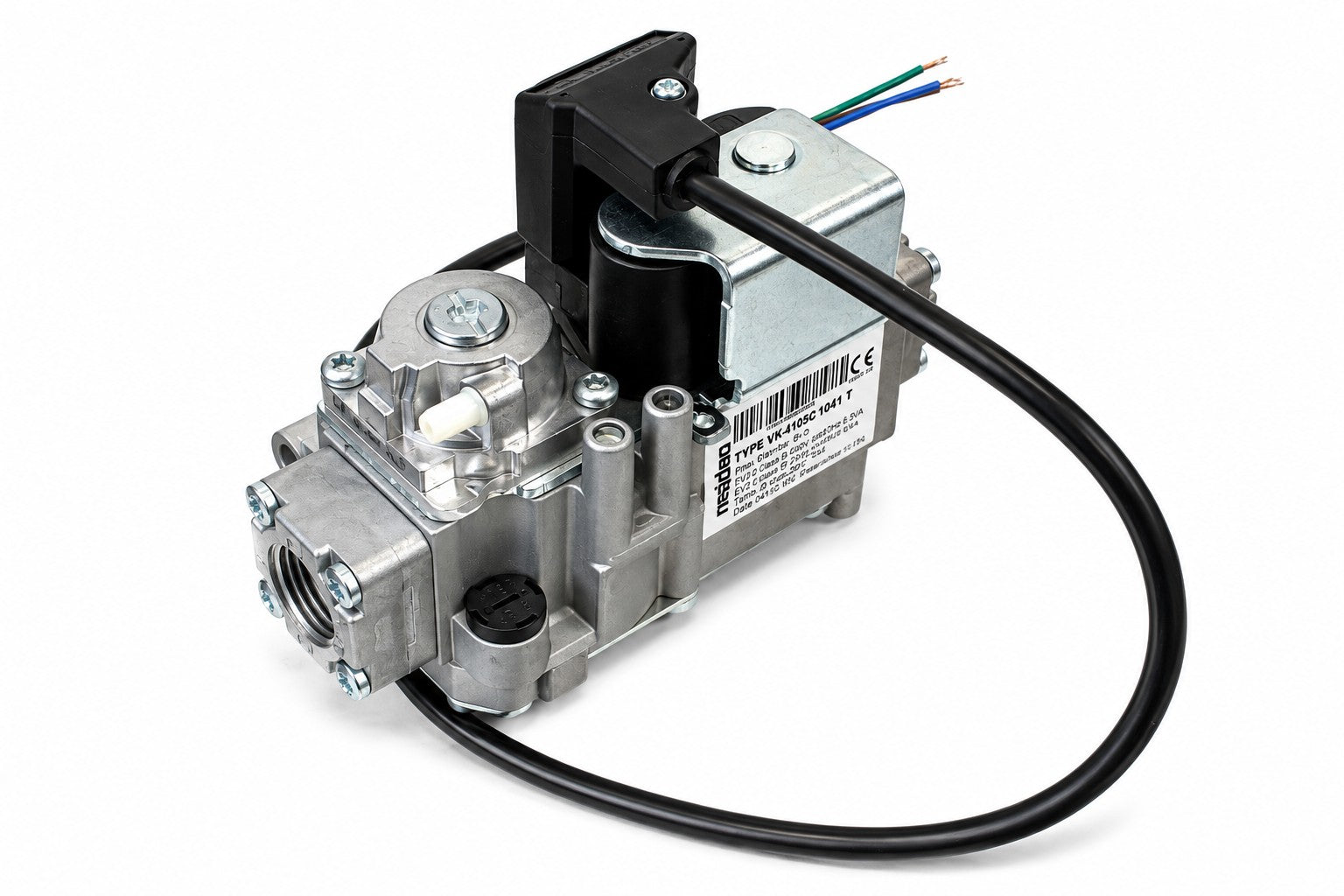

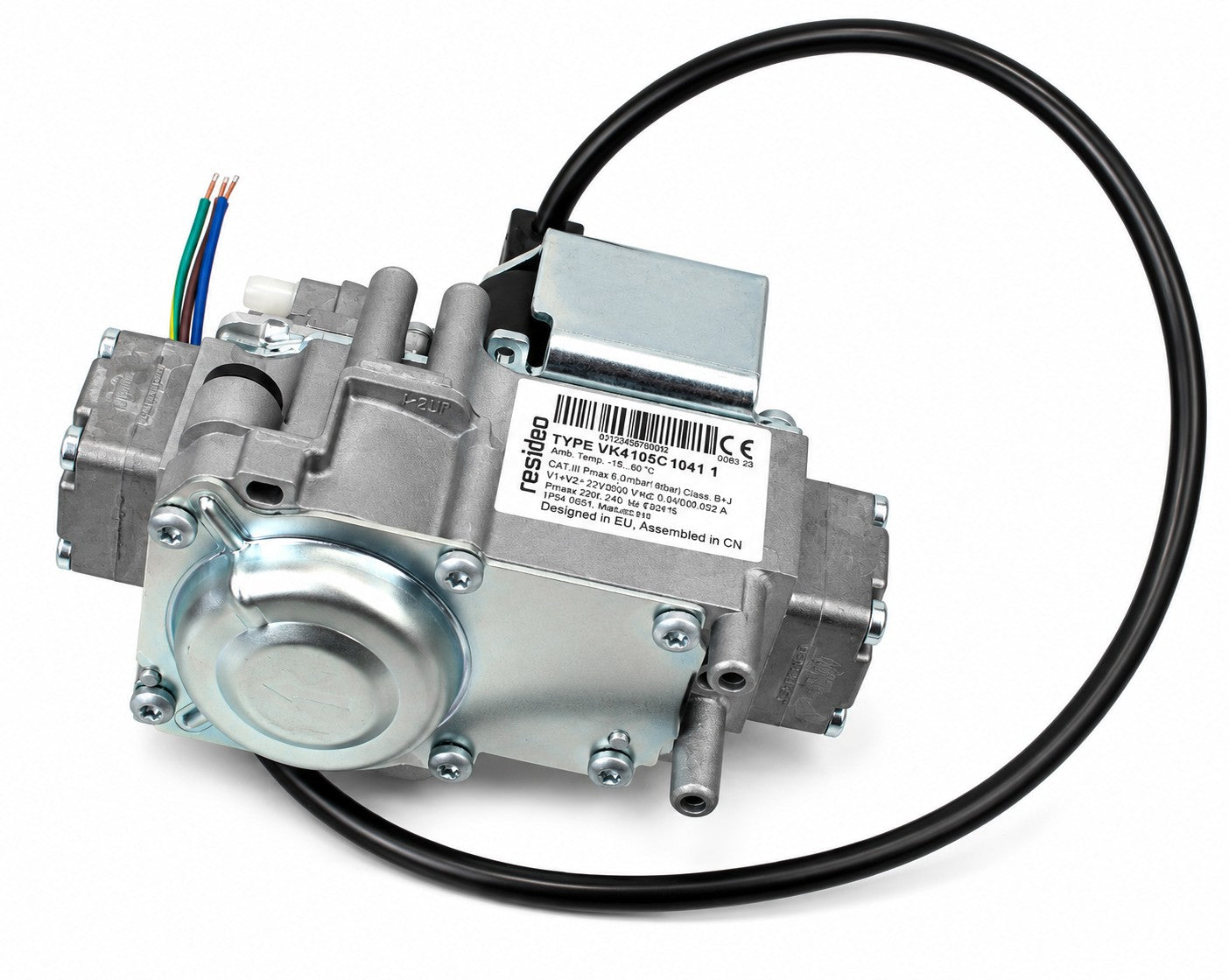

Resideo Honeywell VK4105C1041 Gas Valve 220-240V Servo Pressure Regulating Gas Control

The Resideo / Honeywell VK4105C1041 is a gas control valve designed for automatic ignition applications with servo pressure regulation.

This valve incorporates an automatically operated safety valve and a standard V5306E servo pressure regulator, providing controlled gas delivery for compatible gas-fired appliances.

The VK4105C1041 is designed for applications requiring a 220–240V AC supply and has 18.6 × 18.6 mm gas connections. The valve is suitable for compatible heating and commercial appliance applications where the original VK4105C1041 specification is required.

Key Features

• Manufacturer: Resideo / Honeywell

• Model: VK4105C1041

• Type: VK4105C1041 1

• Dimensions: Face to Face 140mm, 1/2" connection

• Application: Gas control for automatic ignition

• Pressure regulation: Servo-regulated

• Safety valve: Automatically operated

• Supply voltage: 220–240V AC

• Frequency: 50/60 Hz

• Soft-light pressure: 5 mbar

• Pressure regulation range: 1.5–20 mbar

• Maximum inlet pressure: 6 kPa / 60 mbar

• Gas connection: 18.6 × 18.6 mm

• Pressure feedback connection: 4 mm

• Regulator: V5306E1424

• Valve length: 105 mm

• Ignition: DBI

• Ambient temperature: -15°C to +60°C

• Valve class: B+J

• CE marked

Suitable Applications

The VK4105C1041 may be found in compatible:

• Commercial heating equipment

• Gas-fired heaters

• Warm-air heaters

• Boilers

• Radiant tube heaters

• Commercial catering equipment

• Other automatic-ignition gas appliances

Important: Always check the complete part number, gas connection arrangement, electrical specification and appliance manufacturer's requirements before ordering. Gas valves must only be installed, commissioned and tested by a suitably qualified gas engineer.

Specification Table

What's Included

1 × Resideo / Honeywell VK4105C1041 Gas Control Valve

Please compare the part number and physical configuration with your existing valve before purchase.

Important Safety Information

This is a gas control component and is intended only for use in compatible gas appliances.

Installation, gas-tightness testing, adjustment and commissioning should be carried out by a suitably qualified and authorised gas engineer in accordance with applicable regulations and the appliance manufacturer's instructions.

Do not use this valve with an appliance unless compatibility has been confirmed.
