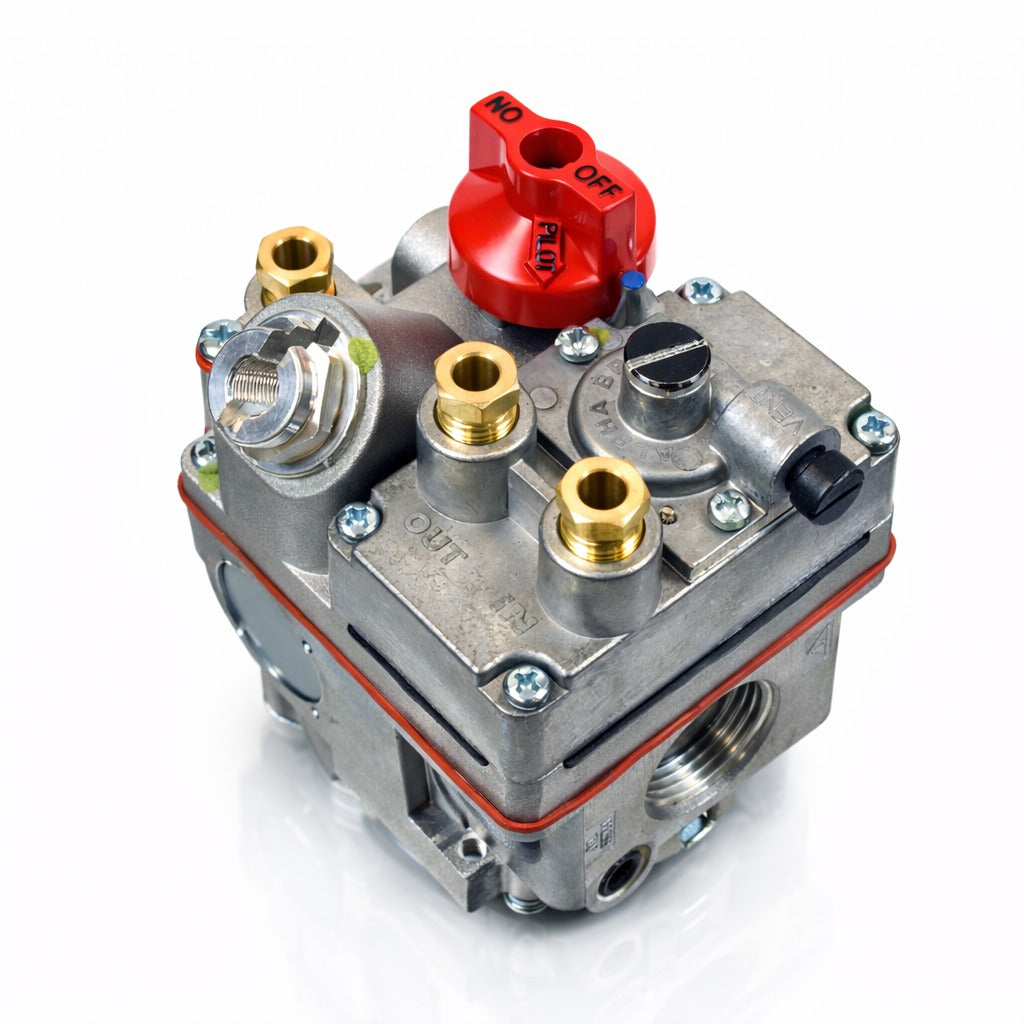

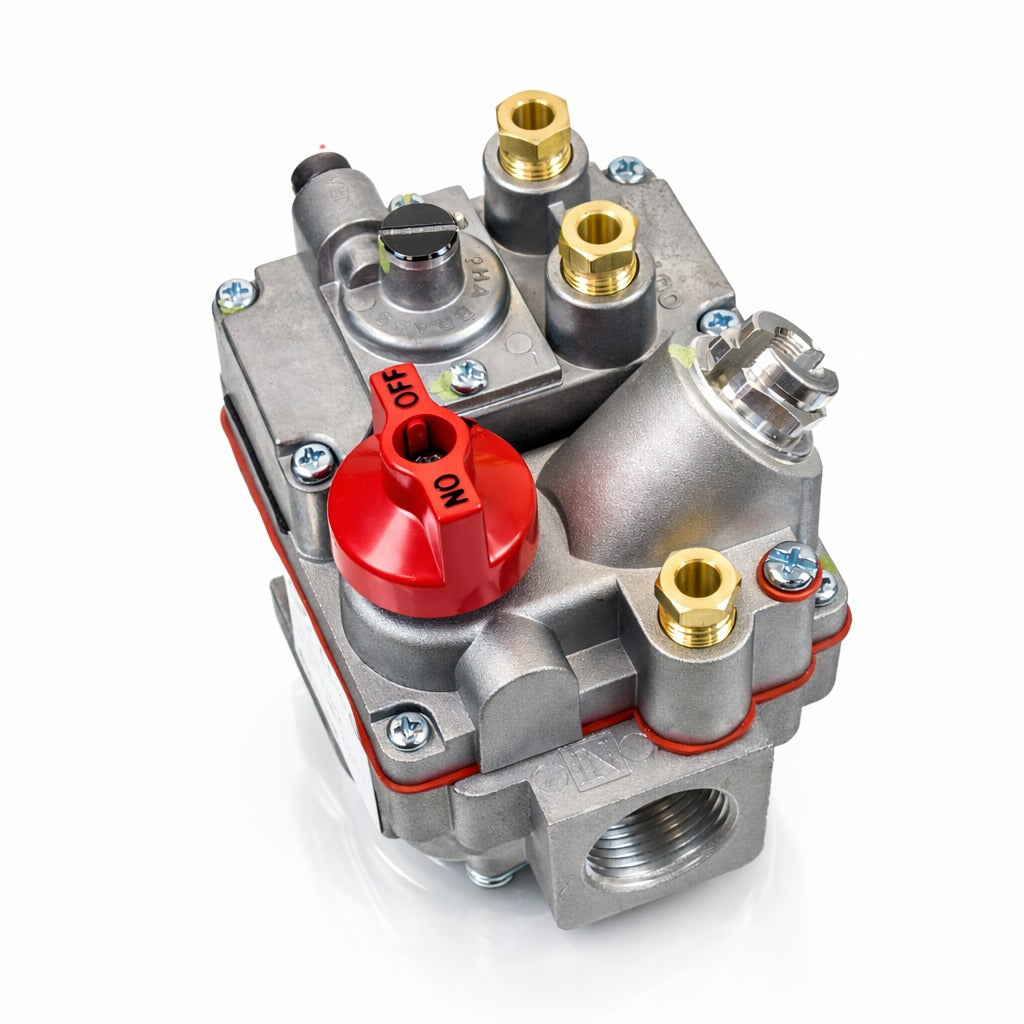

Replacement 7000BGOR Unitrol Gas Control Valve - Natural Gas

Keep your gas-fired equipment running at peak efficiency with the 7000BGOR Unitrol Gas Control Valve. This valve is a versatile, high-reliability solution for a wide range of heating applications, including wall heaters, small furnaces, and boilers. Known for its compact footprint and legendary durability, the 7000BGOR is a "go-to" for technicians and DIYers alike.

Product Highlights

• Millivolt Actuated: Self-powered operation via a thermopile/generator—no external electricity or transformer required.

• Low-Profile Design: Specifically engineered to fit in tighter cabinets where larger valves might struggle.

• Integrated Pressure Regulator: Factory-set for Natural Gas to ensure a steady, safe flame height.

• Simple Three-Position Control: Features a high-visibility dial with "PILOT," "ON," and "OFF" settings for easy maintenance.

• Reliable Safety Shut-off: Includes a 100% safety shut-off feature that halts gas flow immediately if the pilot flame goes out.

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the 7000BGOR and the 7000BMVR?

A: While both are millivolt valves, the BGOR is typically more compact and intended for standard-capacity residential appliances (like wall heaters), whereas the BMVR is often a higher-capacity "Big Mag" version for larger furnaces or commercial boilers. Always check your BTU requirements!

Q: Does this include the thermocouple?

A: No, this is the gas valve only. However, it features the standard screw-in port for a 30mV thermocouple or a coaxial connection for a thermopile, depending on your specific pilot setup.

Q: Can I install this myself?

A: While the installation is straightforward, working with gas lines is inherently dangerous. We strongly recommend installation by a certified gas technician to ensure there are no leaks and that the manifold pressure is set correctly.

Compatibility Note

Tech Tip: The "R" in 7000BGOR stands for Regulated. If your existing valve does not have a regulator (a flat top without the adjustment screw tower), this regulated model is often a safer, more efficient upgrade for modern Natural Gas standards.
