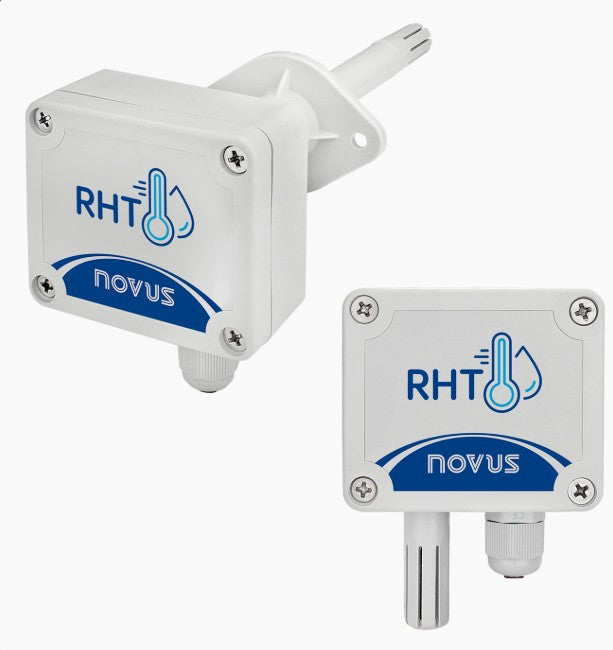

The Novus RHT-WM (Wall-Mount) and RHT-DM (Duct-Mount) transmitters are high-performance industrial sensors designed for precise and stable humidity and temperature monitoring in HVAC, environmental, and process-control applications. Using advanced capacitive sensing technology, the RHT series provides fast response, excellent repeatability, and long-term stability—even in demanding industrial environments.

Both models offer reliable analogue or digital output signals (depending on version), allowing seamless integration with BMS systems, PLCs, industrial controllers, and data-logging equipment.

Key Features

• High-Accuracy Humidity & Temperature Measurement
  Consistent and precise monitoring for environmental and process applications.

• Model Options:

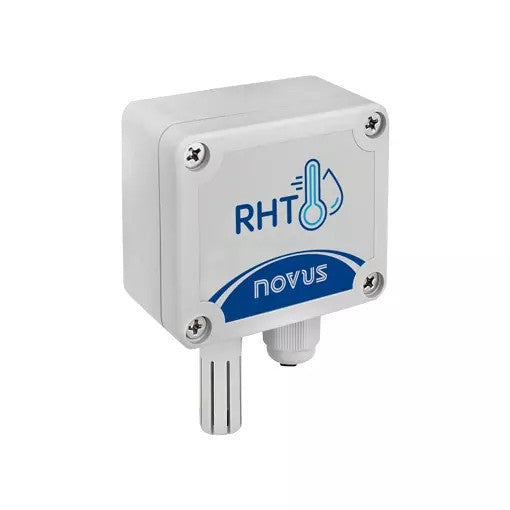

  • RHT-WM: Wall-mounted version for indoor spaces and room monitoring

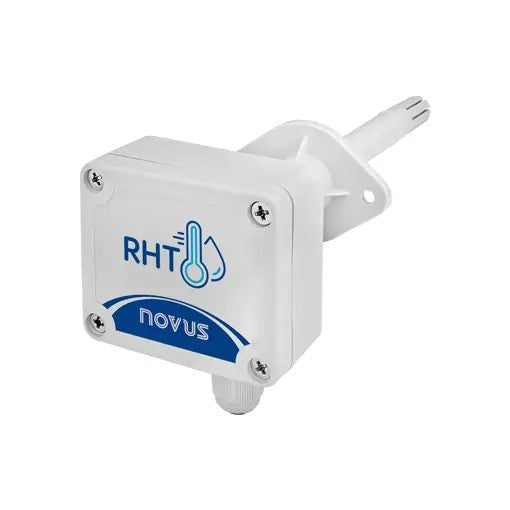

  • RHT-DM: Duct-mounted version for air-handling systems and ventilation ducts

• Advanced Capacitive Sensor
  Ensures fast response, low drift, and excellent long-term stability.

• Analogue or Digital Outputs
  Available in 4–20mA, 0–10V, or Modbus RTU depending on the model.

• Wide Measurement Ranges

  • Humidity: 0–100% RH

  • Temperature: −40°C to +120°C (model dependent)

• Robust Industrial Housing
  Designed for long service life in demanding applications.

• Easy Installation & Maintenance
  Includes quick-access terminals and mounting hardware.

 Technical Specifications

• Humidity Range: 0–100% RH

• Humidity Accuracy: ±1.5% to ±3% RH (model dependent)

• Temperature Range:

  • WM model: −10°C to +60°C

  • DM model: −40°C to +120°C

• Output Options: 4–20mA, 0–10V, Modbus RS-485

• Power Supply: 12–30 VDC

• Sensor Type: Capacitive RH sensor + precision temperature element

• Protection Rating: IP65 (DM), IP40–IP50 (WM depending on version)

• Construction: High-strength ABS or polycarbonate housing

• Mounting: Wall or duct installation (model dependent)

 Applications

• HVAC and building automation

• Air-handling units and ventilation systems

• Cleanrooms and laboratories

• Food processing and storage areas

• Industrial drying and climate-controlled rooms

• Pharmaceutical and biotech environments

• Data centres and IT climate control
