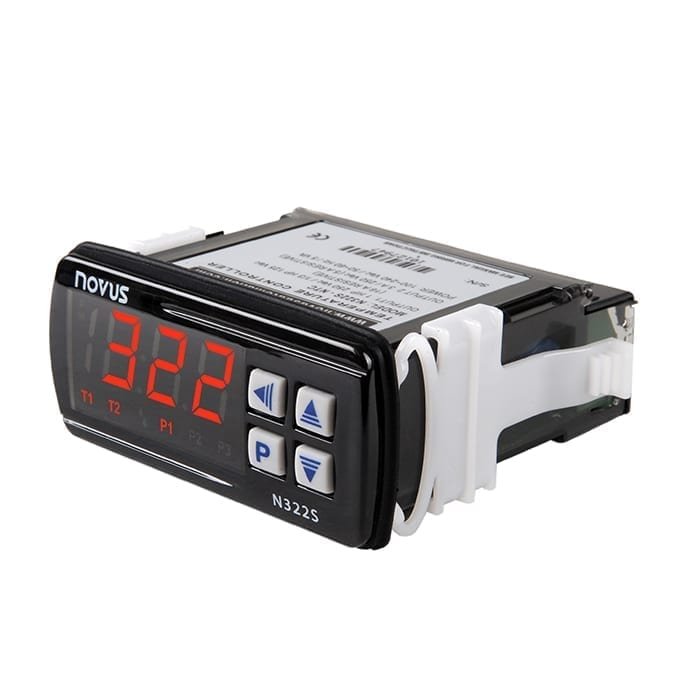

Novus N322 PID Controller PT100, 240V, Relay/Relay

Prix habituel £54.00
Prix habituel Prix soldé £54.00
Taxes incluses.
Novus N322 PID Controller PT100, 240V, Relay/Relay 33x75, single display, PID and ON/OFF control, 110/240VAC power supply, PT100 input, RELAY/RELAY output. alt_text
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Availability: 36 en stock
SKU: N322PT100R/R-80322P1022
N322 d
Prix habituel £54.00
Prix habituel Prix soldé £54.00

Novus N322 PID Controller PT100, 240V, Relay/Relay 33x75, single display, PID and ON/OFF control, 110/240VAC power supply, PT100 input, RELAY/RELAY output.
As distributors of the Novus range, we have a wide range of electronic thermostats suitable for heating and refrigeration with defrost applications. Other applications include solar heating, timing and humidity and temperature control upon request.

They are supplied with 1 or 2 independent outputs, PID and ON/OFF control.

These are great alternatives to the LAE LTR range of controllers.Sensor input: Pt100 (-50 to 300 °C)
IP65 enclosure frontal protection
Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) and relay SPST-NA: 3 A / 250 Vac
Resolution: 0,1 °C from -19,9 to 199,9 °C
Accuracy: ± 0,5 °C / °F ±1 digit (Pt100)
Adjustable hysteresis
Sampling: 1,5 per second
Working temperature: 0 to 50 °C
Power supply: 100-240 Vac/dc
Digital communication via RS485 with Modbus RTU protocol(optional)
Dimensions: 75 x 33 x 75 mm
