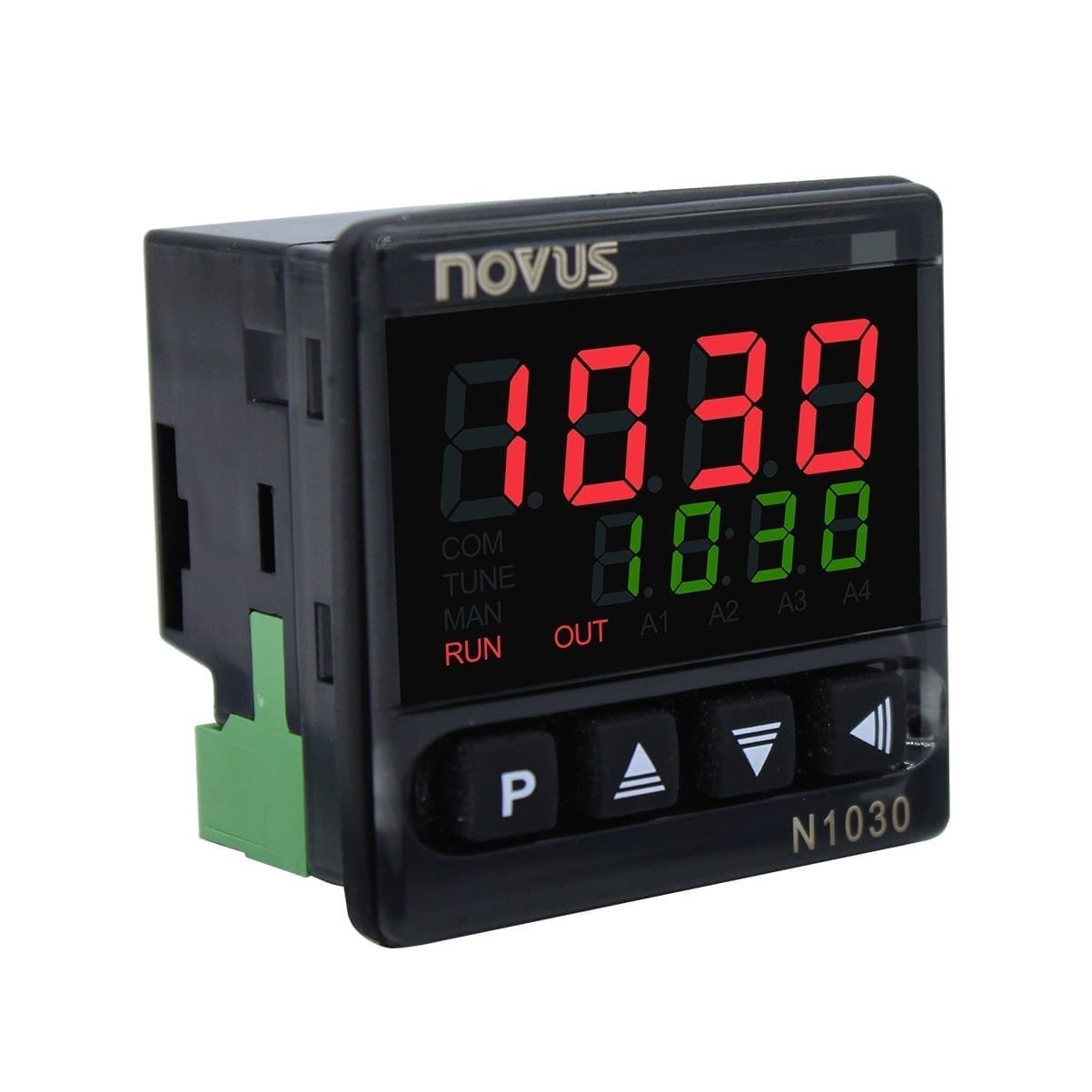

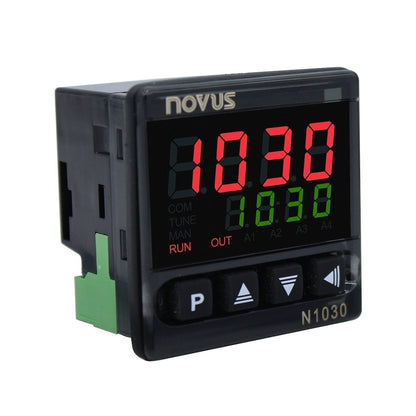

NOVUS N1030T PID Temperature Controller & Timer – SSR/Relay

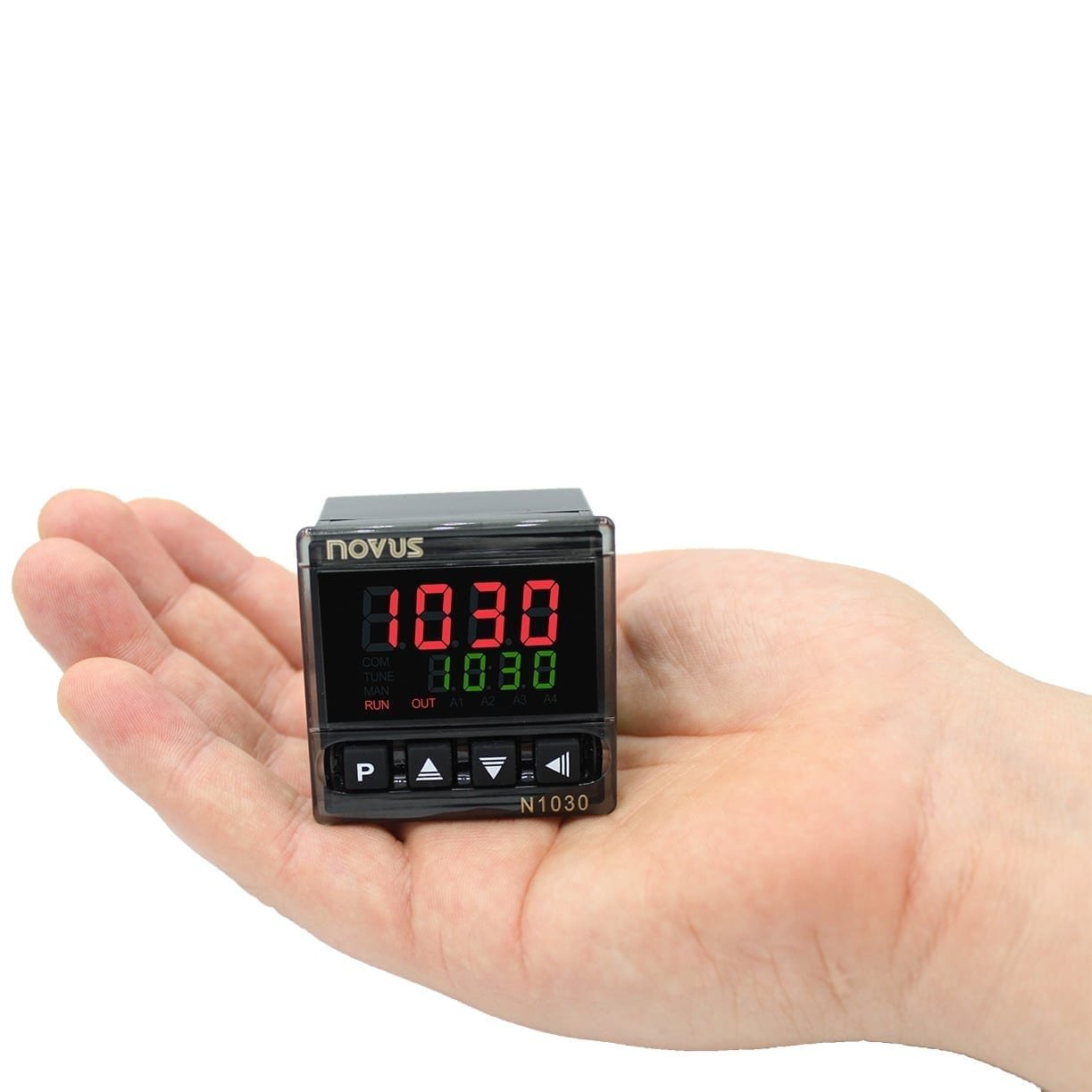

The NOVUS N1030T PID temperature controller and timer combines temperature regulation with two independent timers in a compact 48 x 48 x 35mm enclosure. Designed for machine and equipment control panels, it supports single-loop PID or ON/OFF control with Type J, K and T thermocouple or Pt100 RTD inputs.

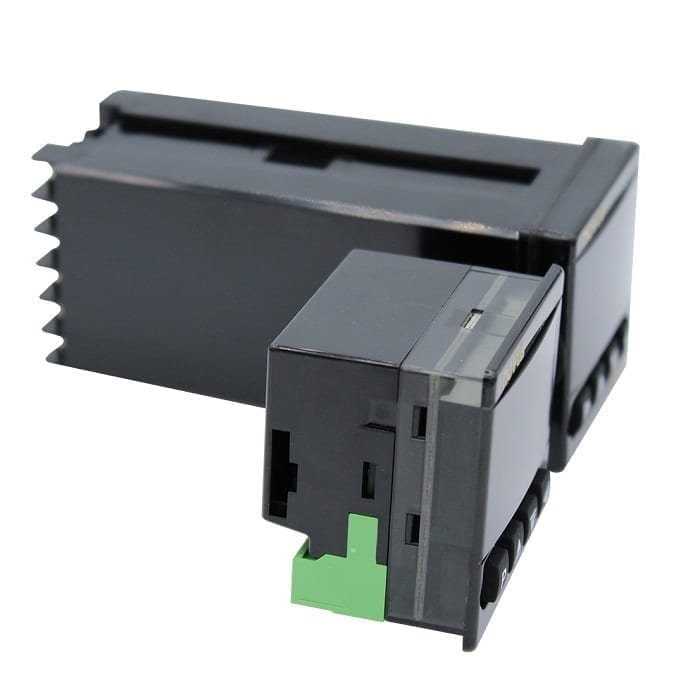

This N1030T-PR listing is for the SSR pulse/relay output model, described as the 240V version. Its 35mm body depth and detachable terminal block help simplify installation where space behind the panel is limited.

Temperature control with integrated timing

Use the N1030T to combine a temperature setpoint with a timed process. The timers can count up or down, use seconds or minutes as the time base, and be triggered by the setpoint or the front-panel F key. A control output linked to the timer can switch on or off at the end of the interval, allowing the sequence to be configured for the application.

• PID auto-tuning: assists setup of the temperature control parameters.
• Two independent timers: adjustable up to 99:59 in mm:ss or hh:mm format.
• Two configurable outputs: assign outputs to control, alarm or timer functions as required.
• Flexible sensor inputs: accepts J, K and T thermocouples and Pt100 RTDs.

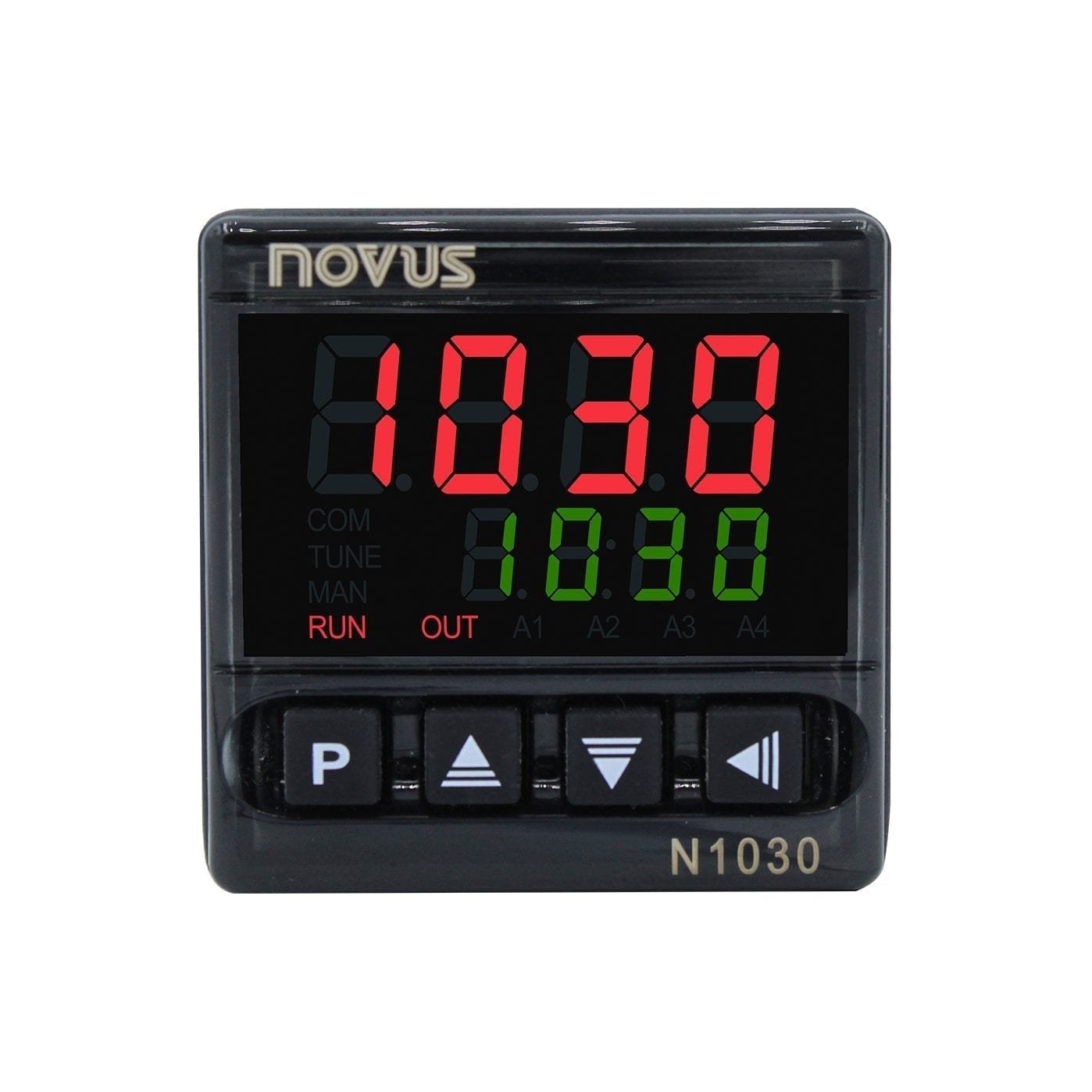

• Clear process display: dual red and green four-digit display with decimal indication.
• Protected configuration: password protection and configurable setpoint limits.

Technical specifications

Check the supply and output version before ordering

The N1030T range includes different supply and output configurations. This listing identifies the N1030T-PR SSR/relay model as the 240V version; the low-voltage options and dual-relay versions mentioned in general range specifications should not be treated as interchangeable. Match the supply rating, sensor, output arrangement and panel installation requirements to your equipment before ordering. Contact Under Control Instruments if you need help confirming the correct version.

What is the benefit of a PID controller with a timer?

A PID controller regulates temperature by comparing the measured value with the setpoint and adjusting the output. Integrated timers add time-based control to that process. The N1030T brings these functions together in one panel-mounted unit, with configurable timer triggers and end-of-interval output behaviour.
