Universal Oven Fan 149mm – Commercial Catering Oven Circulation Fan

Universal 149mm Oven Fan / Circulation Fan designed to improve heat distribution and temperature consistency in commercial catering ovens, hot cupboards, warming cabinets and other professional kitchen equipment.

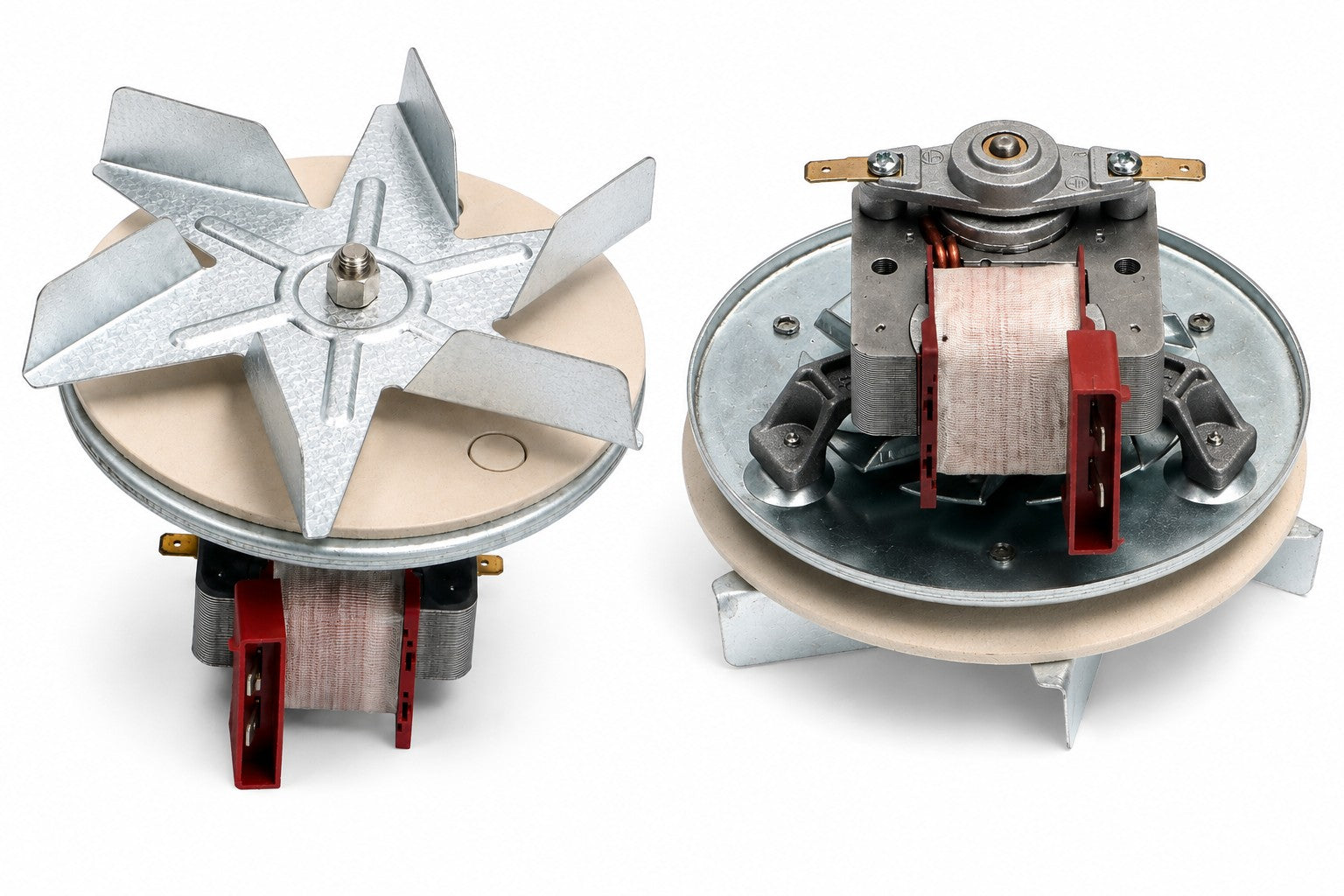

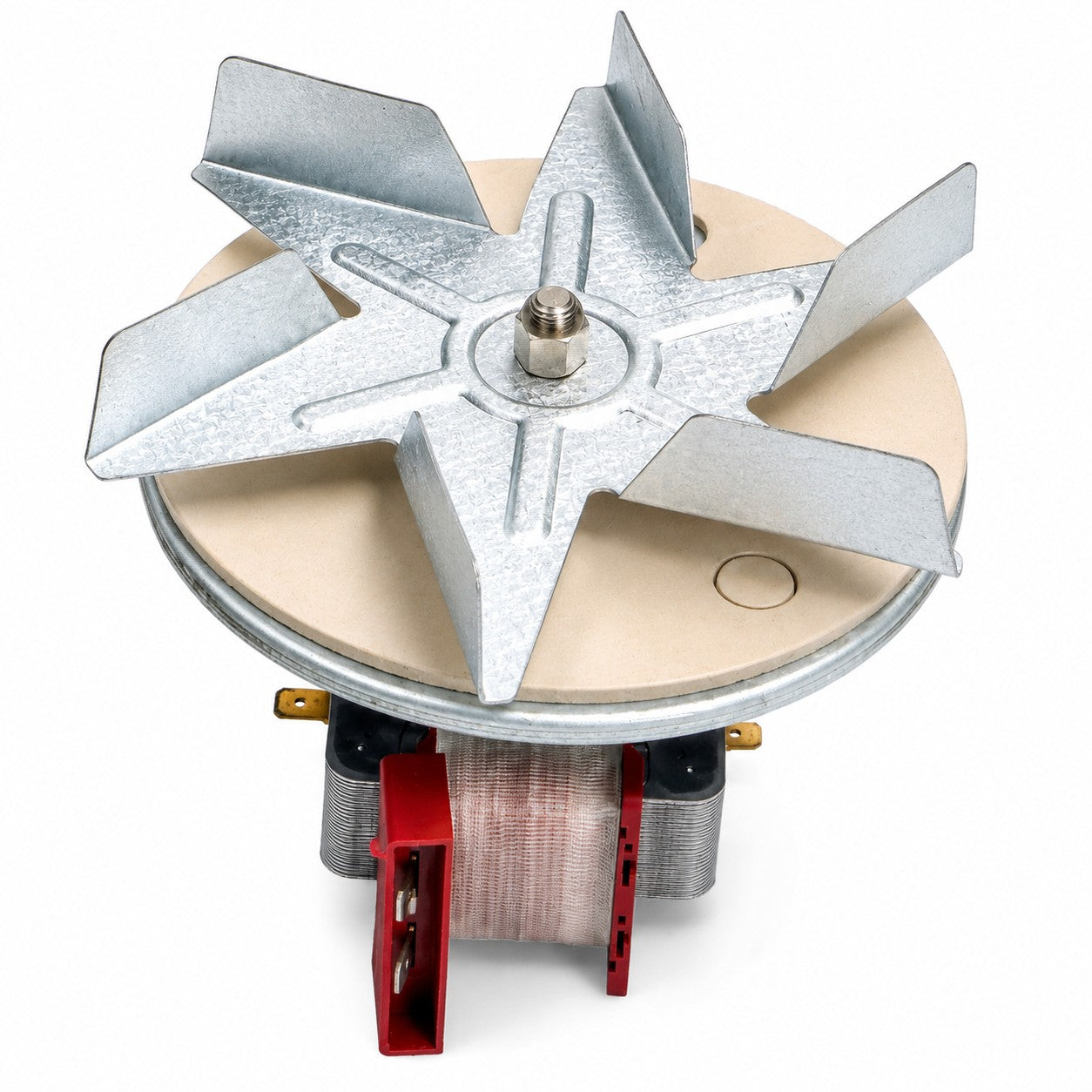

The fan assembly combines a radial sheet-steel impeller with a heat-shield mounting plate, positioning the motor away from the hottest area of the appliance. This design helps provide reliable air circulation while protecting the motor from elevated operating temperatures.

Ideal for catering equipment manufacturers, OEM applications, and repair and replacement, this universal circulation fan can be used across a wide range of commercial cooking and food-warming equipment, subject to dimensional and electrical compatibility.

Key Features

• Fan Type: Universal oven circulation fan

• Fan Diameter: 149mm

• Application: Commercial catering equipment

• Designed to improve oven heat circulation and temperature distribution

• Radial impeller manufactured from sheet steel

• Includes heat-shield mounting plate

• Motor positioned away from the hot area for improved heat protection

• High-temperature-resistant lubrication

• Available with sleeve bearing or ball bearing configurations depending on specification

• Motor winding insulation rated Class H

• Suitable for OEM, replacement and equipment manufacturing applications

Designed for Improved Heat Circulation

Effective air circulation is essential for maintaining a more consistent temperature throughout an oven or warming cabinet.

The radial impeller helps move heated air around the cooking chamber, reducing temperature variations and helping distribute heat more evenly.

This makes the fan suitable for applications where consistent cooking, heating or warming performance is required.

Suitable Applications

The universal 149mm circulation fan is suitable for a wide range of commercial and professional kitchen equipment, including:

• Commercial convection ovens

• Catering ovens

• Bakery ovens

• Hot cupboards

• Warming cabinets

• Climate cabinets

• Meal warmers

• Dish warmers

• Food holding equipment

• Commercial kitchen appliances

• OEM catering equipment

Construction & Design

The fan incorporates a radial impeller manufactured from sheet steel, providing a robust solution for commercial catering applications.

A dedicated mounting plate/heat shield separates the motor from the high-temperature area, helping reduce the thermal load on the motor during operation.

The motor is designed with Class H winding insulation, making it suitable for demanding high-temperature environments when used within the manufacturer's specified operating conditions.

Specifications

* Bearing configuration may vary depending on the specific fan supplied. Please check the product specification before ordering.

Universal Replacement & OEM Applications

This 149mm oven circulation fan is suitable for catering equipment manufacturers and replacement applications where a universal fan solution is required.

Before ordering, please check the fan diameter, mounting dimensions, motor specifications, voltage, frequency, rotation, airflow requirements and electrical connections against the existing fan or equipment requirements.

Important Compatibility Information

Although it is described as a universal oven fan, compatibility depends on the appliance's complete electrical and mechanical specifications.

Please ensure the fan is suitable for your specific application before installation. A suitably qualified engineer should carry out the electrical installation.
