Ultra Low Temperature Dry Block/Wet Calibrator（-115℃~50℃)
Prix habituel
£10,149.60
Prix habituel
Prix soldé
£10,149.60
Prix unitaire
par
Taxes incluses.

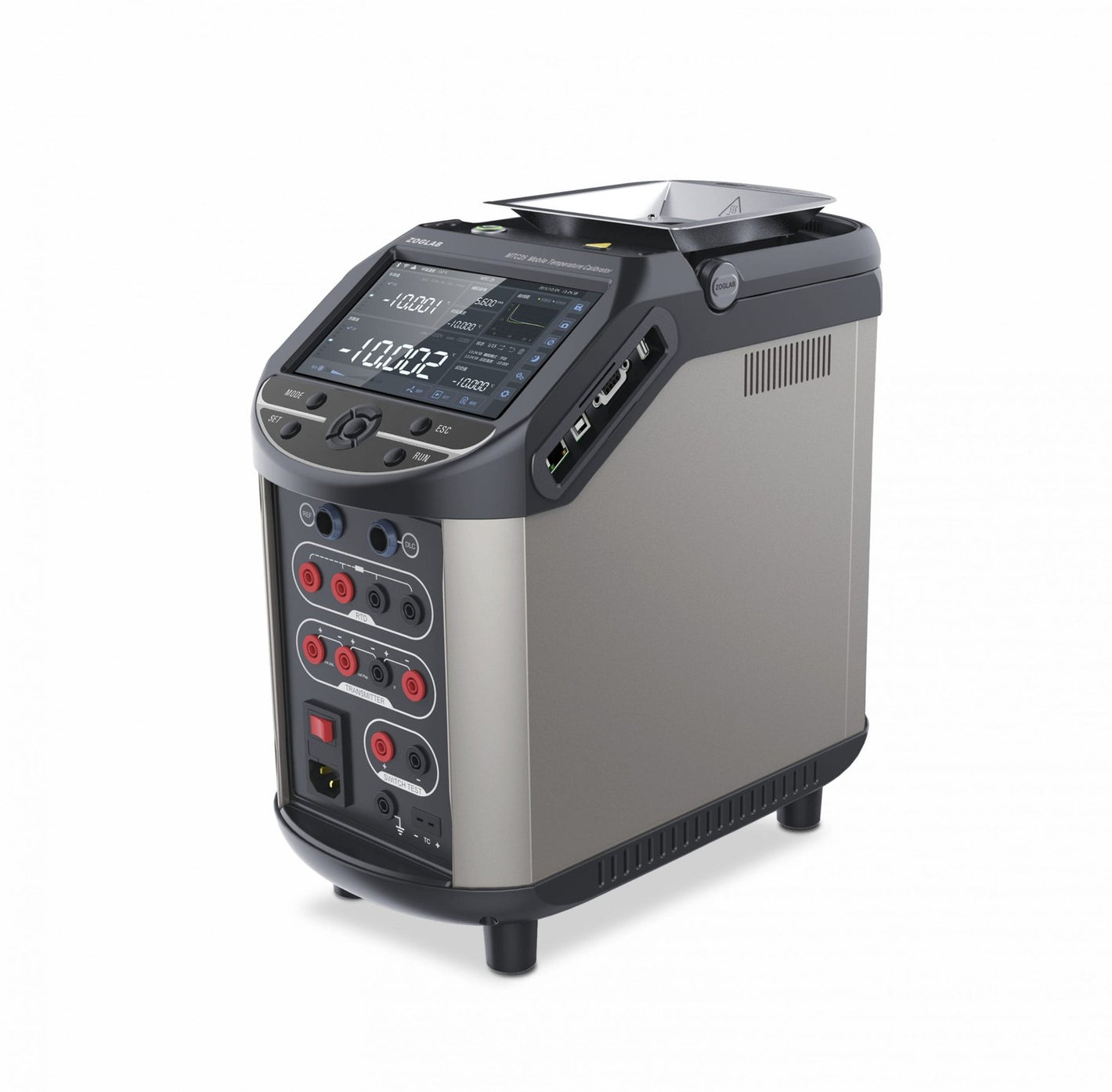

Ultra Low Temperature Dry Block/Wet Calibrator（-115℃~50℃), supplied with flight case and insert.
Impossible de charger la disponibilité du service de retrait
Availability:
Stock bas : 1 restant(s)
SKU:
UCI-SL-AB-CAL
Prix habituel
£10,149.60
Prix habituel
Prix soldé
£10,149.60
The UCI-SL-AB-CAL Ultra Low Temperature Dry Block/Wet Calibrator (-115℃ to +50℃) provides precise, stable, and uniform temperature calibration for laboratory and on-site applications. Designed for portability and high efficiency, this calibrator allows rapid stabilisation and enhanced calibration speed, making it ideal for a wide range of temperature-measuring instruments, including temperature sensors, standard thermometers, dilatation thermometers, thermocouples, and thermal resistors.
The UCI-SL-AB-CAL solves common issues found in lower-end models, such as slow heat-up times and temperature inaccuracies, delivering faster calibration cycles and superior reliability. Its advanced heating principle ensures rapid heating, stable temperature holding, and quick cooling. Combined with high-precision sensors and touch screen operation, this model offers industry-leading calibration performance while meeting international standards.
Key Features
-
Model: UCI-SL-AB-CAL
-
Ultra-Low Temperature Range: -115℃ to +50℃ for specialized calibration tasks
-
Dual Functionality: Dry block and wet calibration using liquid (e.g., anhydrous ethanol)
-
High Accuracy & Stability: ±0.5℃ accuracy, ±0.05℃/10min full range stability
-
Rapid Heat-Up & Cooling: Max temperature reached in ~10 minutes; minimum temperature in ~90 minutes
-
Dual Input Channels: Simultaneous measurement of reference sensor and sensor under test
-
Automatic Switch Test: Records ramping and switch points automatically
-
Data Logging: USB interface for data transfer and calibration records
-
Portable & Compact: Lightweight design for field and laboratory use
-
Advanced Interface: Intuitive digital touch screen display
-
Safety & Compliance: Over-temperature and short-circuit protection, CE and RoHS certified
Technical Specifications
| Parameter | Value |
| Temperature Range | -115℃~+50℃ |
| Display Accuracy | ±0.5℃ Full range |
| Display Stability | ±0.05℃/10min Full range |
| Working Condition | 0℃~35℃, 30%~80%RH (No condensation) |
| Altitude | <2000m |
| Working Environment | 23℃±2 |
| Insert Depth | Insert depth 135mm |
| Total Depth | Total depth 180mm |
| Insert Diameter | 29.8mm |
| Heating Time | -95℃~40℃: 40min |
| Cooling Time | 23℃~-90℃: 40min |
| Cooling Time | 23℃~-115℃: 90min |
| Stable Time | 15min |
| Resolution | 0.01° |
| Display | LCD display, ℃ or ˚F |
| Dimensions | 495mm * 190mm * 280mm (19.5in * 7.5in * 11in) |
| Weight | 16kg |
| Power (100V~115V) | 100V~115V (±10%) 50/60Hz, 575W |
| Power (200V~230V) | 200V~230V (±10%) 50/60Hz, 575W |
| Fuse (115V) | 6.3A T 250V |
| Fuse (230V) | 3.15A T 250V |
| Communication Interface | RS-232 / RS-485 |
| Refrigerant | R704 (Helium) <20g, ASHRAE, Security Level A1 |
Applications
-
On-site and laboratory calibration of temperature sensors, RTDs, thermocouples, and standard thermometers
-
Dry block mode: Quick, clean calibration without liquids
-
Wet calibration mode: For sensors requiring full immersion and enhanced thermal transfer
-
Used in cryogenics, chemical, pharmaceutical, food, machinery, and industrial laboratories
-
Ideal for portable, ultra-low temperature verification in demanding environments
What Is A Dry-Block Calibrator?
A dry-block calibrator, also known as a dry-well calibrator, is a device used to calibrate temperature measurement instruments such as thermocouples, thermometers, thermistors, and resistance temperature detectors (RTDs). Unlike other calibration methods that might use liquid baths, dry-block calibrators provide a stable and uniform temperature source in a dry environment.
How It Works
Heating/Cooling: The dry-block calibrator heats or cools a metal block to a precise temperature.
Insertion: The block has pre-drilled holes where temperature sensors or probes are inserted.
Stabilization: The calibrator stabilizes at the set temperature to ensure uniform heat distribution.
Measurement: The readings from the sensors are compared to the calibrator’s displayed temperature, and any discrepancies are noted and adjusted.
Applications
Dry-block calibrators are widely used in industries where precise temperature control is crucial, such as:
Pharmaceuticals: Ensuring medications are stored at correct temperatures.
Food and Beverage: Maintaining product quality and safety.
Manufacturing: Ensuring machinery and equipment function properly.
