Red Double Pole Rocker Switch (20A, 250V): Heavy-Duty Off-On Control

Robust & Reliable Power Control for High-Demand Applications

When managing high-powered electrical devices, you need a switch that's not just functional, but built to last and designed for safety. Flimsy or underspecified switches can lead to frequent failures, safety hazards, and downtime. Don't compromise on the integrity of your electrical circuits.

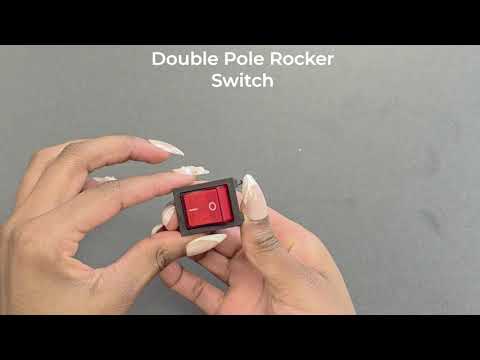

Our Red Double Pole (DPST) Rocker Switch is expertly crafted for maximum functionality and durability in demanding environments. With a substantial 20A current capacity and a 250V rating, it's perfectly suited for controlling high-powered devices, providing a dependable Off-On switching solution. The striking red rocker with clear "I/O" indicator marks makes power settings instantly visible, reducing confusion and serving as a clear warning or indicator. Designed for a standard 28x22mm cutout, this double pole switch offers secure and reliable control, making it an ideal choice for a wide range of industrial, commercial, and household applications.

Key Features & Benefits

• Heavy-Duty 20A, 250V Rating: Engineered to handle significant electrical loads, providing robust and reliable switching for high-powered appliances and machinery.

• Double Pole, Single Throw (DPST) Design: Controls both live and neutral lines simultaneously, offering enhanced safety and complete circuit isolation when in the "Off" position.

• Clear Off-On Functionality: Features a simple "Off-On" (I/O) switching action, intuitively indicating power status at a glance.

• Vibrant Red Rocker: The distinct red colour provides clear visual identification, often used for emergency stop or power-on indicators, especially useful in control panels with multiple switches.

• Intuitive "I/O" Indicator Marks: Clearly marked "I" (On) and "O" (Off) symbols ensure effortless power setting identification, even in low light.

• Standard Cutout Size: Designed to fit a common 28x22mm panel cutout, allowing for easy integration into new designs or as a direct replacement.

• Durable Construction: Built with high-quality materials to withstand repeated use and harsh operating conditions, ensuring long-lasting performance.

• Versatile Applications: Ideal for a wide range of uses, from industrial machinery and commercial appliances to workshop tools and demanding home electronics.

Understanding Double Pole (DPST) Switches

A Double Pole, Single Throw (DPST) switch is an electrical switch that controls two separate electrical circuits (or two points on the same circuit) with a single flick of its actuator. In its "On" position, it completes both circuits, allowing current to flow. In its "Off" position, it simultaneously breaks both circuits, ensuring complete isolation of the connected device from the power supply. This makes DPST switches inherently safer and more effective for controlling devices that draw higher currents or where full disconnection from the mains is desired, as they interrupt both the live and neutral lines (or two live lines in some industrial configurations).

Technical Specifications

• Product Type: Double Pole Rocker Switch

• Colour: Red Rocker

• Switching Function: Off-On (Single Throw)

• Poles: Double Pole (DPST)

• Current Rating: 20 Amps (A)

• Voltage Rating: 250 Volts AC (V)

• Panel Cutout Dimensions: 28mm x 22mm (approximately)

• Indicator Marks: I / O (On / Off)

• Terminal Type: Faston Terminals

• Material: Nylon

• Contact Resistance: 50mΩ

• Insulation Resistance: 100MΩ

• Dielectric Strength: 1500VAC/1min

• Operating Temperature: -20°C to +85°C

• Certifications: CE, RoHS, UL, VDE

Important Installation & Safety Notice

Installation of this electrical component should only be performed by a qualified and licensed electrician in strict accordance with all local electrical codes, safety regulations, and the appliance manufacturer's instructions. Always ensure the main power supply to the circuit is disconnected and locked out before any work is carried out. Improper wiring or installation can lead to electrical shock, fire, equipment damage, or void its warranty. Ensure the switch's ratings (20A, 250V) are suitable for your specific application.

Frequently Asked Questions (FAQs)

Q1: What does "Double Pole" (DPST) mean for a switch?

A1: Double Pole, Single Throw (DPST) means the switch simultaneously controls two separate contacts. When you flip the switch, it connects or disconnects two independent circuits (or both the live and neutral lines of a single circuit) at the same time, offering enhanced safety and complete isolation.

Q2: What is the recommended panel cutout size for this switch?

A2: This switch is designed to fit a standard rectangular panel cutout of approximately 28mm x 22mm. Always verify dimensions before making your cutout.

Q3: Can this switch be used for both AC and DC applications?

A3: While rated for 250V AC, this switch's suitability for DC applications depends on the specific load and current. For DC use, it's crucial to consult the manufacturer's specifications or an electrical professional, as DC switching can be more demanding on contacts.

Q4: How durable is this switch?

A4: This switch is expertly crafted with robust materials designed to withstand the demands of commercial and industrial environments, ensuring excellent durability and long-lasting performance even with frequent use.

Q5: Are there other colours or configurations available?

A5: We stock a wide range of rocker switches in various colours (like green, black, amber), current ratings, and configurations (e.g., SPST, SPDT, DPDT) to suit diverse application needs. Please browse our full selection or contact our team for assistance.

Ensure safety and dependable performance for your electrical equipment with clear visual indication. Add this Red Double Pole Rocker Switch (20A, 250V) to your cart today!
