1. Maison
  3. Panel Indicators (10mm)
  5. Panel Mount Indicators 10mm chrome bezel

Panel Mount Indicators 10mm chrome bezel

£2.10
£2.10
Taxes incluses.

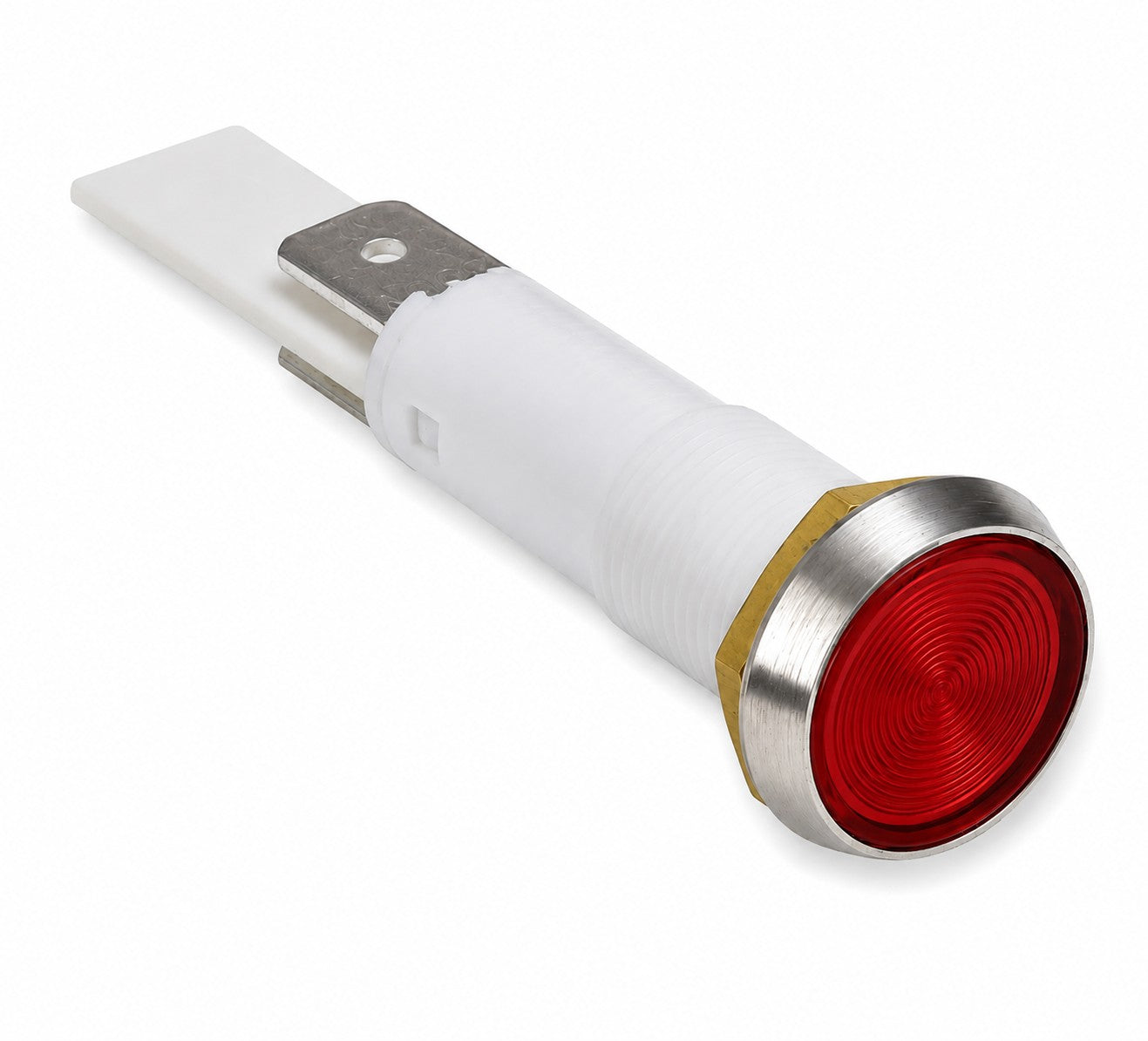

Panel Mount Indicators 10mm chrome bezel x 50mm, steel bezel and locknut, faston connectors, 230v
Colour: Amber
Availability: 400 en stock
SKU: AMBER-10NJ-5
Tags:
Collections:
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
10nj-5 indicator
£2.10
£2.10

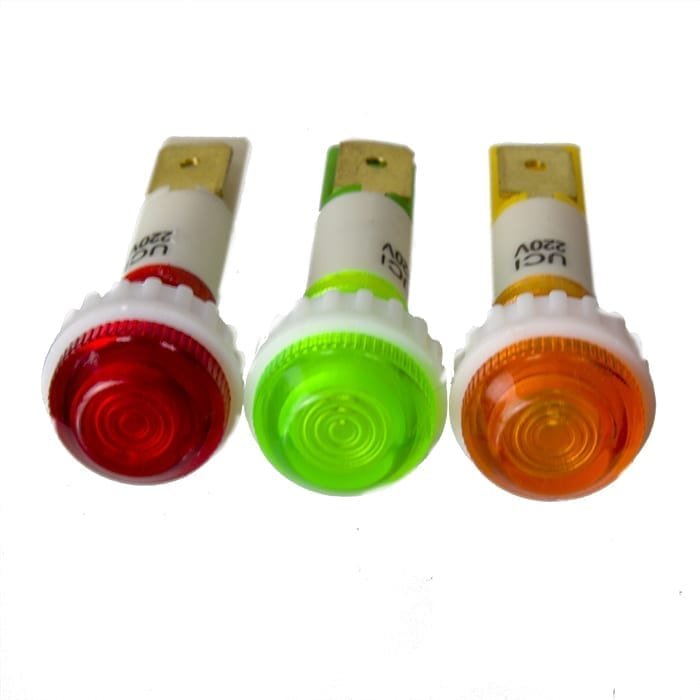

10NJ-2 Set
vendor-unknownPanel Mount Indicators LED 10mm

The 10NJ-5 panel indicator lamp is a compact, high-quality LED indicator designed for clear visual signalling in industrial control panels, electrical equipment, and machinery interfaces. Built with durable PA66 engineering plastics and a nickel-plated brass lamp shade, it delivers long service life, stable illumination, and reliable electrical performance.

Ideal for OEM manufacturers, repair applications, appliance control boards, and general industrial signalling.

Replacement for RS 589-698, 589-711, 589-705 and Bulgin C027500NBB, C027500NBD, C027500NBC and Valintine 6325 and 6326



Indicator Lamp Specification – 10NJ-5
Tail Configuration Terminal
Terminal Specifications 6.3 mm wide, 0.8 mm thickness, 10 mm length
Dielectric Intensity 1500 VAC
Ambient Temperature -15°C to +80°C
Panel Thickness 1–12 mm
Nut Torque Max 44 N·m
Protection Level IP50
Mounting Hole 10 mm
Unit Weight 5.2 g
Unit Accessories Nut × 1 piece
Materials
Lamp Shade PA66 & Nickel-plated Brass
Enclosure Nylon PA66
Base Nylon PA66
LED Parameters
LED Type 5 mm non-polarity LED
Rated Voltage available 2V / 3V / 6V / 12V / 24V / 48V / 110V / 220V / 380V
Rated Current 20 mA
LED Colour Options Red, Green, Blue, Yellow, White
LED Life 70,000 hours
Optical & Electrical Characteristics (at IF = 20 mA)
Luminous Intensity Red: 1000–1500 mcd
Green: 8000–10000 mcd
Yellow: 1000–1500 mcd
Blue: 2000–3000 mcd
Dominant Wavelength Red: 620–625 nm
Green: 520–525 nm
Yellow: 588–592 nm
Blue: 460–465 nm
50% Power Viewing Angle Red: 35°
Green: 60°
Yellow: 35°
Blue: 35°
Forward Voltage Red: 1.8–2.2 V
Green: 3.0–3.2 V
Yellow: 2.0–2.2 V
Blue: 3.0–3.2 V
Reverse Current (at VR = 5 V) Red / Green / Yellow / Blue: Max 3 µA
Lens Colour Same as LED colour
