Nozzle Heater 40mm Diameter x 25mm Width, 150W

150W Nozzle Heater, 40mm Diameter x 25mm Width

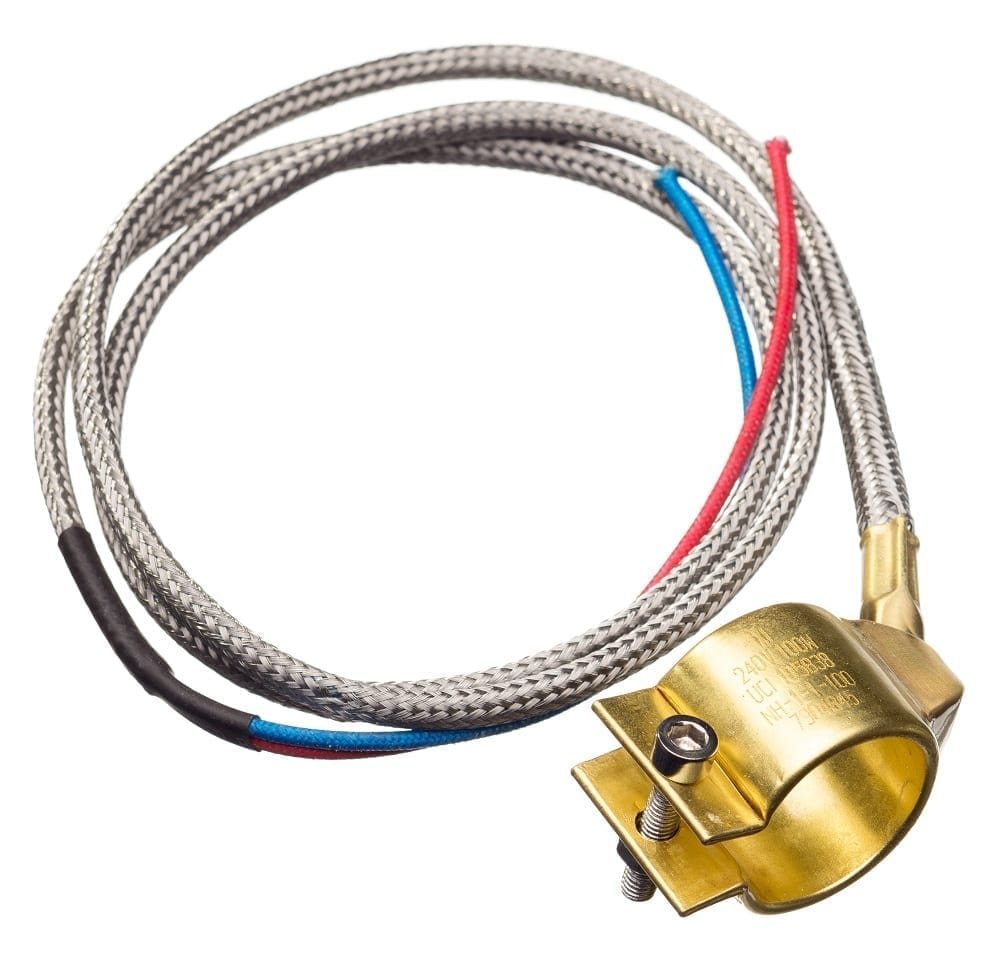

This 150W mica nozzle heater provides localised heating around compatible cylindrical machine nozzles. Its 40mm internal diameter x 25mm width suits installations requiring this specific size and output, including compatible injection moulding and extrusion equipment.

A brass sheath encloses the mica-insulated heating assembly in a sealed band construction. A clamping band secures the heater around the nozzle, while 1m stainless-steel overbraided leads provide reach for electrical connection.

Key Features

• 150W output: Targeted heating for a matched nozzle and process.
• Brass sheath and mica insulation: Compact industrial heating construction.
• Sealed assembly: Helps protect internal components from contamination.
• Clamping band: Secures the heater around a compatible nozzle.
• 1m leads: Fibreglass insulation with stainless-steel overbraiding and loose wire ends.

Technical Specifications

Check the Fit Before Ordering

Dimensions are internal diameter x width. Match both measurements, the 150W rating and supply voltage to your existing heater or machine specification. Matching diameter alone does not confirm suitability. Do not substitute a different wattage without checking the machine's requirements.

Installation & Use

Installation and electrical connection should be carried out by a qualified, competent person with the supply isolated. Ensure correct contact with the nozzle and use suitable temperature control. Follow the machine and heater instructions. Sealed construction does not mean suitability for immersion or direct liquid exposure.

Frequently Asked Questions

What do the measurements mean?
40mm is the internal diameter around the nozzle; 25mm is the width along it.

What leads are supplied?
1m stainless-steel overbraided leads with loose wire ends.

Need help choosing?
Contact Under Control Instruments with your existing heater's dimensions, voltage, wattage and part reference.
