Nozzle Heater 35mm Diameter x 30mm Width, 150W

150W Nozzle Heater, 35mm Diameter x 30mm Width

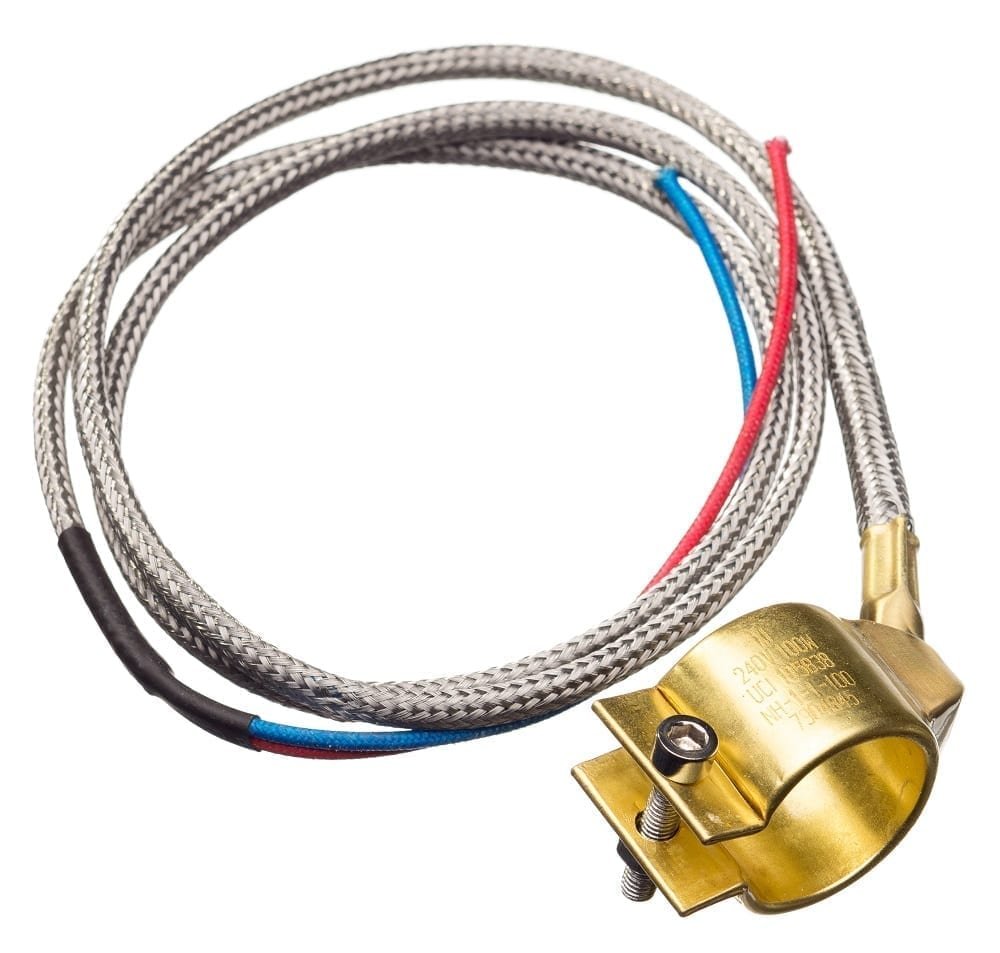

This 150W mica-sealed nozzle heater provides localised heating for compatible plastic injection machine nozzles. Measuring 35mm internal diameter x 30mm wide, it is intended for installations requiring this specific size, wattage and 240V supply.

The brass construction and sealed heating assembly help limit contamination from plastic leakage around the nozzle. Supplied with 1m stainless-steel braided leads connected via an offset spigot leg, this heater combines a compact heating band with a defined lead-exit arrangement.

Key Features

• 150W output: Targeted heat for a suitably matched nozzle and process.
• Brass construction: For industrial nozzle-heating applications.
• Mica-sealed assembly: Helps protect internal heating components from contamination.
• 1m stainless-steel braided leads: Protective outer braiding for the lead assembly.
• Offset spigot leg: Check its position against the available machine clearance.

Technical Specifications

Check the Fit Before Ordering

Dimensions are internal diameter x width. Match the 35mm diameter, 30mm width, 150W output and 240V supply to your existing heater or machine specification. Check the offset leg and lead routing have sufficient clearance. Matching dimensions alone do not confirm compatibility.

Installation & Use

Installation and electrical connection should be carried out by a qualified, competent person with the supply isolated. Ensure the heater is correctly fitted to the nozzle and used with suitable temperature control. Follow the machine and heater instructions. Sealed construction does not mean suitability for immersion or direct liquid exposure.

Frequently Asked Questions

What do the measurements mean?
35mm is the internal diameter around the nozzle; 30mm is the width along it.

What leads are supplied?
1m stainless-steel braided leads connected via an offset spigot leg.

Can you help with a different size?
Contact Under Control Instruments with the required dimensions, voltage, wattage and lead arrangement to discuss a suitable option or special requirement.
