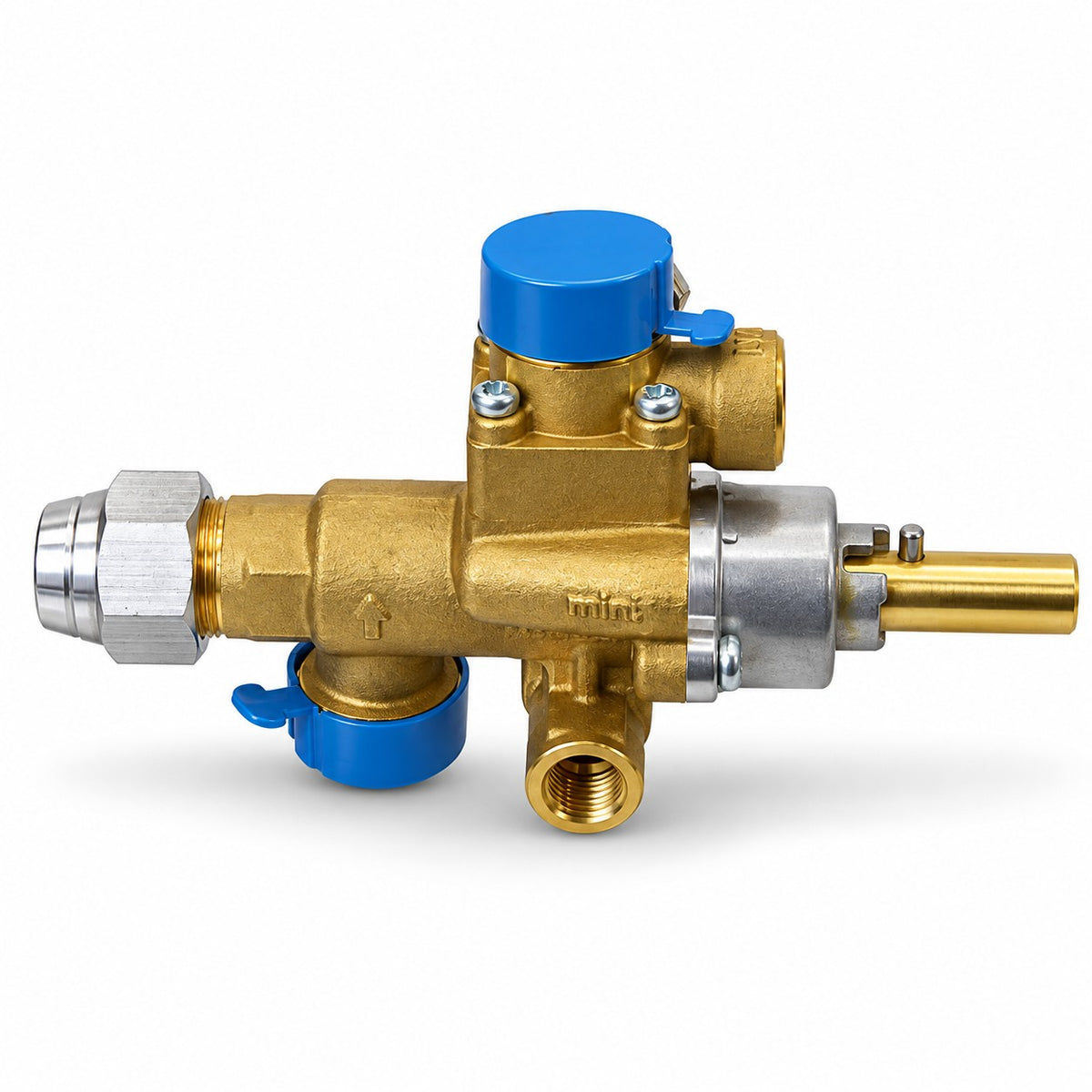

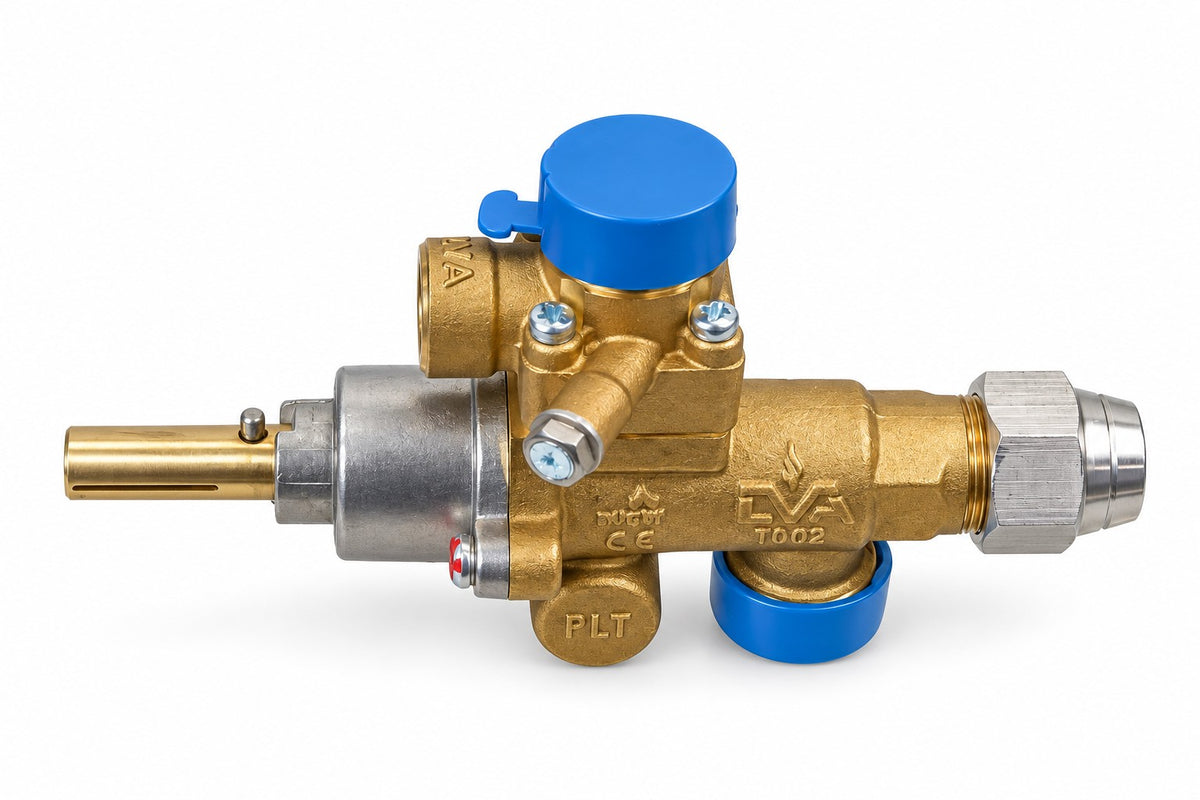

Replacement PEL 22S/V Flame Failure Gas Control Valve – Vertical Mount

The replacement PEL 22S/V flame failure gas control valve is for compatible commercial catering appliances requiring vertical installation. Suitable for Natural Gas and LPG applications, this replacement valve combines 1/2-inch BSP inlet and outlet connections with an M9 thermocouple connection.

When replacing an existing valve, matching the model, mounting orientation and connections helps you select the right component before your equipment is serviced.

Flame supervision for compatible gas appliances

This flame failure device (FFD), also known as a flame supervision device (FSD), works with a thermocouple to shut off the gas supply following loss of flame. The valve requires a manual reset after shut-off. The thermocouple is sold separately.

Key features

• PEL 22S/V model: Vertical-mount replacement gas control valve.
• Natural Gas and LPG compatibility: For use in appropriately specified gas systems.
• 1/2-inch BSP inlet and outlet: Check the existing pipework and fittings before ordering.
• Pilot feed: For 4mm or 6mm pilot pipe, with the appropriate fittings.
• M9 thermocouple connection: Check compatibility with your existing thermocouple.
• Manual reset: Requires operator intervention following gas shut-off.

Technical specifications

• Brand / model: PEL 22S/V
• Component type: Replacement flame failure gas control valve, FFD / FSD
• Mounting orientation: Vertical
• Gas types: Natural Gas and LPG (propane / butane)
• Main connections: 1/2-inch BSP inlet and outlet; compatible with suitable 12mm compression fittings
• Pilot pipe sizes: 4mm or 6mm with suitable fittings
• Thermocouple connection: M9
• Reset: Manual
• Body material: Brass / zinc alloy

Check replacement compatibility before ordering

This replacement valve may be suitable for compatible wok cookers, catering ranges, ovens, griddles and other commercial gas appliances specified for the PEL 22S/V. It is not a universal replacement. Confirm the appliance manufacturer's specified valve, vertical mounting arrangement, gas type, operating pressure and all connection sizes before purchase.

Installation and compatibility checks should be carried out by an appropriately qualified gas engineer in accordance with the appliance and valve manufacturer's instructions.

Frequently asked questions

Is this a replacement valve for vertical installation?

Yes. This listing is for a replacement PEL 22S/V valve designed for vertical installation. Check the model reference and orientation of the valve being replaced.

Does it work with Natural Gas and LPG?

The valve is listed for Natural Gas and LPG applications. Your engineer should confirm its suitability for the appliance's gas type and operating conditions.

Is a thermocouple included?

No. The thermocouple is sold separately. This valve has an M9 thermocouple connection.

Not sure whether it fits your appliance?

Contact Under Control Instruments with your appliance make, model and existing valve reference before ordering.
