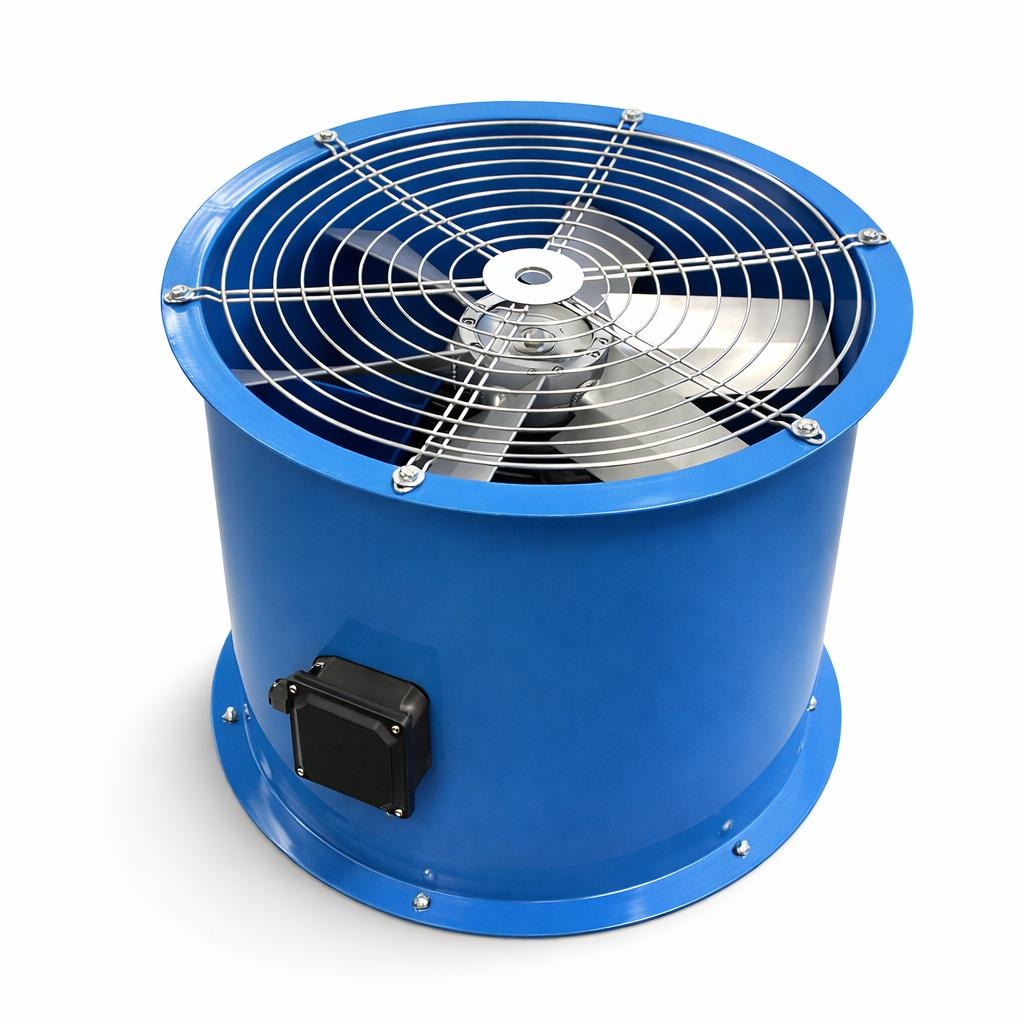

500mm Commercial Kitchen Extract Fan 1.1kW Single Phase – 11,800 m³/hr Ventilation Fan

Product Description

This 500mm Commercial Kitchen Extract Fan is a heavy-duty cylindrical cased ventilation fan designed for demanding extraction systems in restaurants, takeaways, catering kitchens, and food production environments.

Delivering a powerful airflow of up to 11,800 m³/hr, this fan is ideal for medium to large canopy extraction systems where efficient removal of heat, smoke, grease and cooking fumes is essential.

The fan features a durable galvanised steel casing with corrosion-resistant coating, providing long service life in grease-laden commercial kitchens. A high-efficiency die-cast aluminium impeller ensures strong airflow performance while maintaining efficient energy consumption.

Powered by a 1.1 kW single-phase motor, the fan operates from a 240V supply, making it suitable for most commercial kitchen installations. With IP65 motor protection, integrated thermal protection and a pre-wired external junction box, installation is straightforward and reliability is assured.

Key Features

• High airflow capacity: 11,800 m³/hr

• 500mm commercial kitchen extraction fan

• 1.1 kW single-phase motor

• Durable galvanised steel cylindrical casing

• Die-cast aluminium impeller for high-efficiency airflow

• IP65 rated motor protection

• 1450 RPM operating speed

• External junction box for easier installation

• Designed for commercial kitchen canopy extraction systems

Key Specifications

• Fan Diameter: 500 mm

• Airflow: 11,800 m³/hr

• Motor Power: 1.1 kW

• Speed: 1450 RPM

• Pressure: 230 Pa

• Voltage: 240V Single Phase

• Construction: Galvanised steel casing

• Impeller: Die-cast aluminium

Technical Specifications

Applications

Suitable for:

• Commercial kitchens

• Restaurant canopy extraction systems

• Takeaway kitchens

• Catering ventilation systems

• Food production facilities

• Kitchen smoke and grease extraction systems

Frequently Asked Questions

What size canopy is this fan suitable for?
This 500mm commercial kitchen fan delivering 11,800 m³/hr airflow is suitable for medium to large commercial kitchen canopy extraction systems.

Is this fan suitable for greasy kitchen environments?
Yes. The galvanised steel casing and aluminium impeller are designed for use in grease-laden commercial kitchen ventilation systems.

Is the fan single phase or three phase?
This model is supplied with a 240V single phase motor, suitable for most commercial kitchen electrical supplies.

Can this fan be used for restaurant kitchen ventilation?
Yes, it is specifically designed for restaurant, takeaway and catering kitchen extraction systems.
