Phoenix Vortex 21-Jet Wok Burner – Natural Gas or LPG

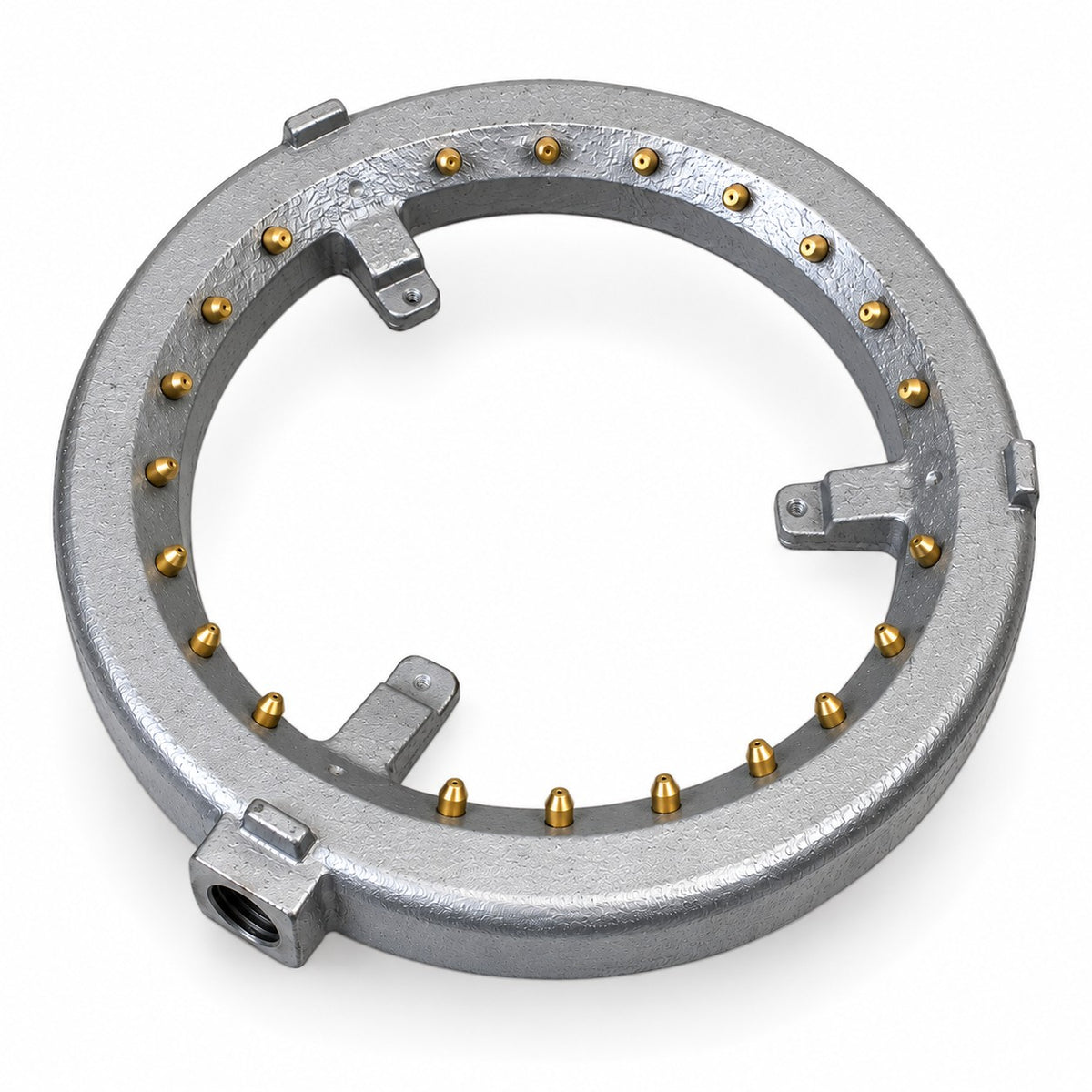

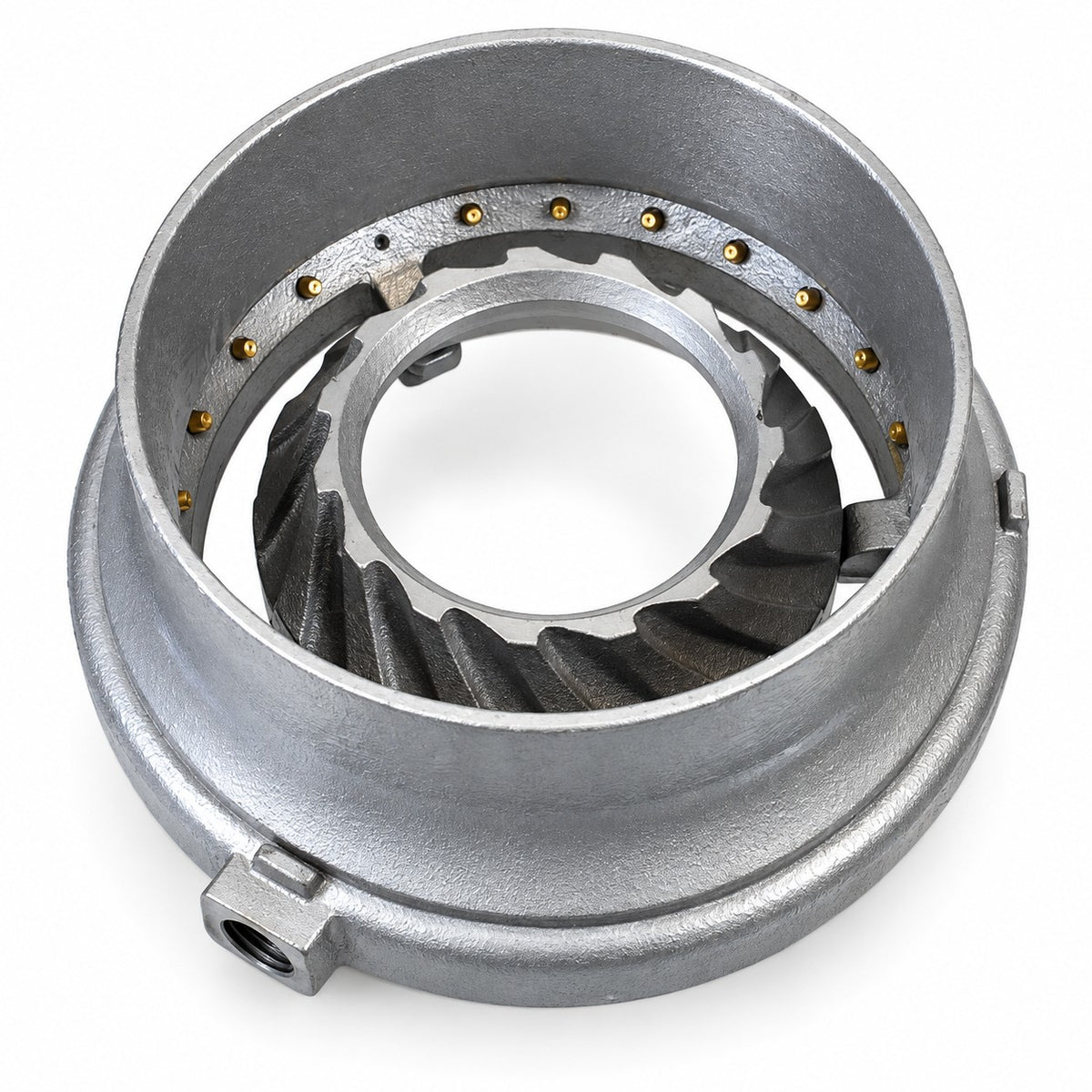

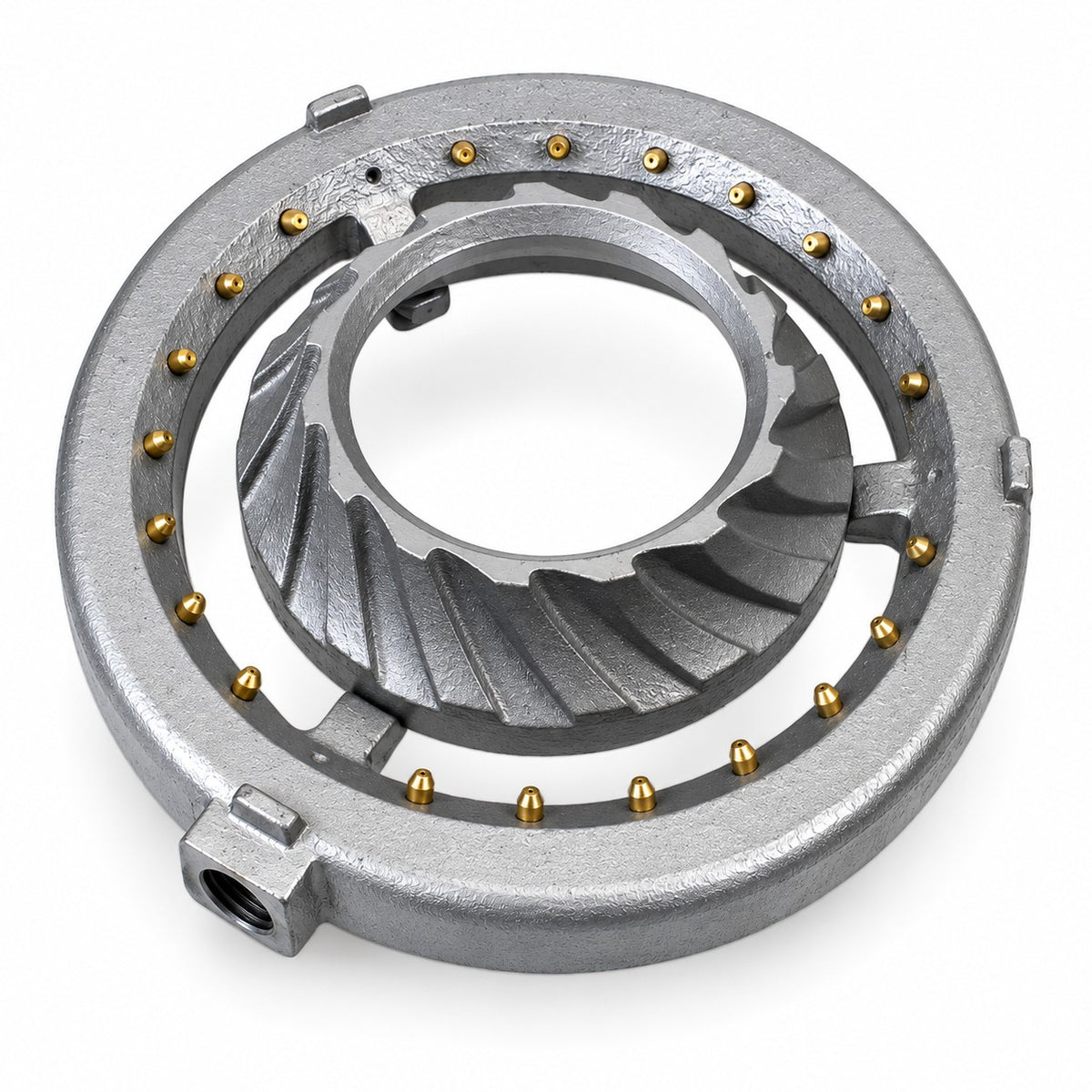

The Phoenix Vortex 21-jet wok burner is designed for commercial wok cooking in restaurants, takeaways and catering kitchens. Combining a heavy-duty cast iron body with 21 brass jet nozzles, it provides concentrated heat for fast-paced stir-fry preparation.

Choose the Natural Gas (NG) or LPG version to match your installation. Replaceable nozzle tips allow worn jets to be serviced without replacing the entire burner.

Built for busy wok stations

• 21-jet burner layout: For high-heat wok cooking, including stir-fried vegetables, noodles, rice, meat and seafood.
• Cast iron body: Heavy-duty construction for commercial kitchen applications.
• Replaceable brass nozzle tips: Service individual tips as required to help maintain the burner.
• Choice of gas versions: Select NG or LPG before adding to your basket.
• 1/2-inch BSP threaded connection: Check compatibility with the existing gas supply arrangement.

Technical specifications

• Product: Phoenix Vortex wok burner
• Number of jets: 21
• Body material: Cast iron
• Nozzle tip material: Brass
• Nozzle tips: Replaceable
• Gas options: Natural Gas (NG) or LPG
• Gas connection: 1/2-inch BSP thread
• Application: Commercial wok cooking

Select the correct gas version

NG and LPG are separate product options. Select the version that matches your kitchen's gas supply, and have an appropriately qualified gas engineer confirm the required operating pressure, gas rating, mounting arrangement and suitability for the appliance before ordering.

Do not assume that changing the supply or swapping nozzle tips alone makes the burner suitable for another gas type. Follow the manufacturer's instructions for installation and servicing.

Check the fit before ordering

For a replacement installation, compare the burner dimensions, mounting points, gas connection and required gas specification with your existing equipment. A 21-jet layout or a matching connection size alone does not confirm compatibility.

Frequently asked questions

Is it available for both Natural Gas and LPG?

Yes. Choose either the NG or LPG option to suit your installation. These are separate versions, not a single burner to connect interchangeably to either supply.

Can the brass nozzle tips be replaced?

Yes. The nozzle tips are replaceable. Use tips specified for the burner and gas configuration.

What is the gas connection size?

The listed connection is a 1/2-inch BSP thread.

Need help choosing the right version?

Contact Under Control Instruments with your gas type, appliance details and any existing burner reference. For replacement enquiries, clear photographs and measurements can help with identification.
