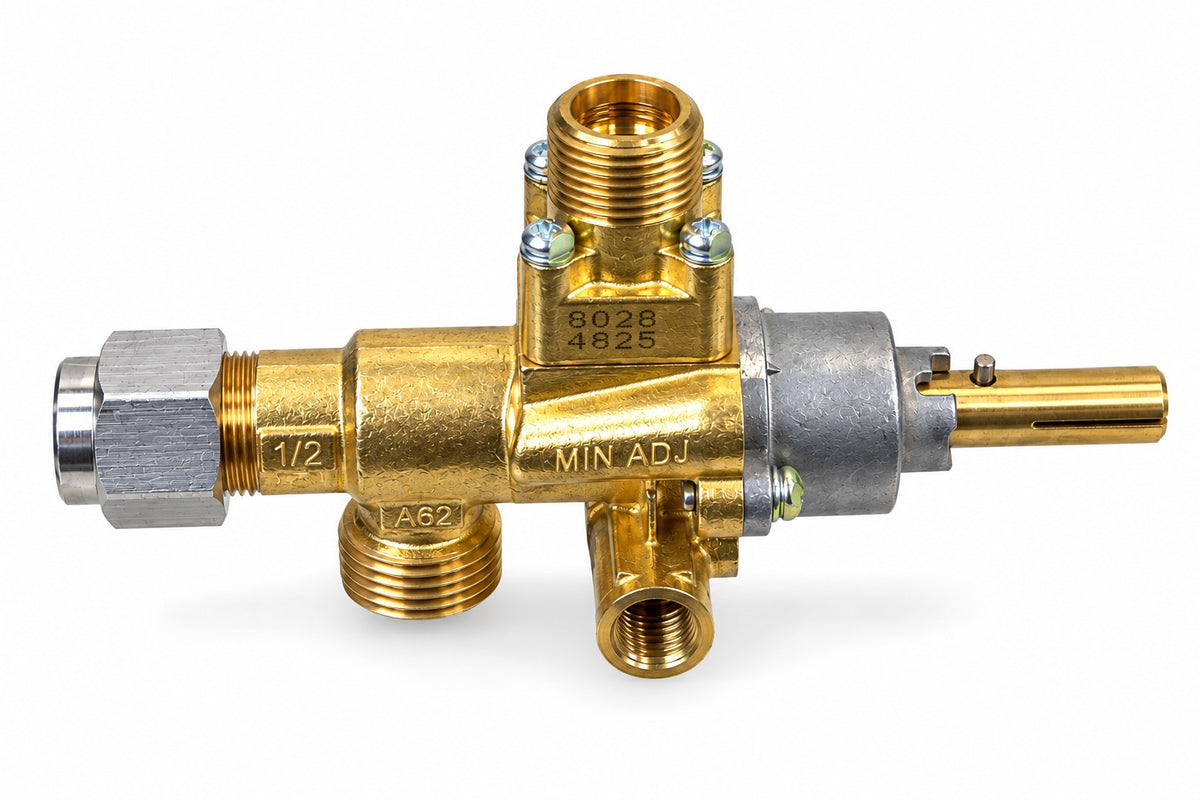

Replacement PEL 22S/V Gas Control Valve – M20x1.5, M8x1 Thermocouple

The PEL 22S/V replacement gas control valve is designed for compatible commercial cooking equipment, including appropriately specified ranges, griddles and boiling tops. This version features M20x1.5 inlet/outlet connections, an M8x1 thermocouple connection and an M10x1 pilot connection.

Check these connection sizes against your existing valve before ordering. PEL 22S/V valves can have different connection arrangements, so the series name alone should not be used to confirm a match.

Key features

• Gas flow adjustment: For controlling burner output in compatible appliances.
• Thermoelectric flame failure protection: Works with a compatible thermocouple to shut off the gas supply following loss of flame.
• Vertical installation: Match the mounting arrangement specified for your appliance.
• Die-cast body: Replacement component for commercial kitchen equipment.
• Natural Gas and LPG applications: Subject to the appliance manufacturer's specifications and correct configuration.

Technical specifications

• Brand / series: PEL 22S/V
• Stock reference: 22S/V-A62V
• Installation orientation: Vertical
• Gas types: Natural Gas or LPG, subject to application compatibility
• Inlet / outlet connections: M20x1.5
• Thermocouple connection: M8x1
• Pilot connection: M10x1
• Listed maximum valve body temperature: 150°C
• Manufactured in: Italy

Check the fit before you buy

This is not a universal-fit valve. Compare the markings on your existing valve and confirm the inlet/outlet threads, pilot connection, thermocouple thread, mounting orientation and control shaft dimensions. Check that your existing control knob matches the replacement valve's shaft.

Your engineer should also verify the required gas type, operating pressure and appliance specifications. Do not assume this M8x1 thermocouple version is interchangeable with an M9-connected PEL valve.

Installation and compatibility checks should be carried out by an appropriately qualified gas engineer in accordance with the appliance and valve manufacturer's instructions.

Frequently asked questions

What thermocouple connection does this version have?

This listing specifies an M8x1 thermocouple connection. Check the thread on your existing assembly before ordering.

What are the main gas and pilot connections?

The inlet/outlet connections are listed as M20x1.5, with an M10x1 pilot connection.

Will it fit any PEL 22S/V application?

No. Match the full valve specification, connections and mounting arrangement to your appliance's requirements, not just the series name.

Need help identifying your replacement?

Contact Under Control Instruments with your appliance make, model, existing valve markings and clear photographs of its connections before ordering.
