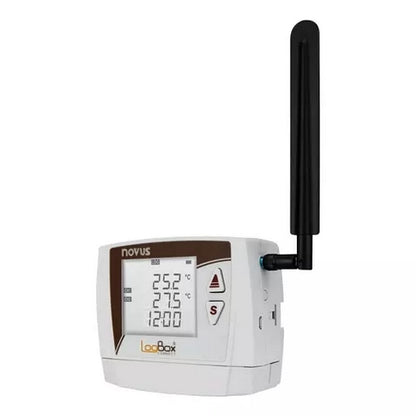

Novus LogBox LTE - Multichannel IoT Data Logger
Regular price
£288.00
Regular price
Sale price
£288.00
Unit price
per
Tax included.
Novus LogBox LTE - Multichannel IoT Data Logger
Couldn't load pickup availability
Availability:
Out of stock
SKU:
8813006500
Collections:
Regular price
£288.00
Regular price
Sale price
£288.00
Overview
The Novus LogBox LTE is a multichannel IoT data logger designed for continuous monitoring of remote applications. It operates on NB-IoT and Cat-M1 bands, ensuring secure and practical data collection. The device stores measured data in its internal memory and periodically publishes it to cloud systems.
Key Features
- Connectivity: Supports NB-IoT, Cat-M1, and GPRS for remote data transmission.
- Inputs:
- 2 Universal Analog Inputs (0-10V DC or 4-20mA)
- 1 Digital Input (pulse counter or event recorder)
- Outputs:
- 1 Digital Output (remotely activated via SMS or MQTT)
- Memory Capacity: Stores up to 140,000 records.
- Recording Interval: Adjustable from 1 second to 12 hours.
- Display: 3-line LCD with 4½ digits resolution.
- Alarms: Configurable minimum and maximum alarms (up to 8 alarms).
- Communication Interfaces: USB and mobile communication.
- Software: Compatible with NXperience for Windows and NXperience Mobile.
- Power Supply: Operates on 10-30V DC with a backup battery for uninterrupted operation.
- Operating Temperature: -20°C to 60°C (with external power).
- Housing Protection: IP40-rated enclosure.
Applications
- Industrial Monitoring
- Remote Data Acquisition
- Environmental Monitoring
- Agriculture & Wastewater Management
- Cold Chain & Vaccine Storage
NOVUS 8813006500 Specification
| Input Signals | 1 Digital Input 2 Analog Inputs |
| Analog signal type | Thermocouples J,K,T,N,E,R,S and B Pt100, 0-50mV, 0-5V, 0-10V, 0-20mA, 4-20mA |
| Digital Input Functions | Count Pulses, Register Events or Start Logger |
| Digital Output | 1 PNP Output (Electronic Key or Alarm) |
| Internal sensors | NTC for temperature, Battery Voltage and External Source Voltage. |
| Display | 3 lines with 4½ digits |
| Resolution | Analog channels: 15 bits Pulse counter: 16 bits |
| Memory Capacity | 140,000 records |
| Recording Interval | 1sec to 12h |
| Variable Record | Instantaneous or average |
| Acquisition Trigger | Date/Time, Start button, Digital Input or by software. |
| Alarms | 8 Alarms (two per channel) Minimum and maximum |
| Internal Buzzer | NXperience (for USB PC) or NXperience BLE (Bluetooth app for smartphone) 3-line display with 4 ½ digits |
| Communication Interfaces | Mobile communication (2G, LTE Cat M1, LTE NB1/2, SMS) USB |
| Configuration software | NXperience for Windows |
| Communication with SCADA or Cloud system | MQTT Protocols |
| Power | 10-30VDC |
| Backup battery | 4 alkaline AA batteries |
| Operating Temperature | With source: -20 to 60°C |
| Housing Protection | IP40 |
