Harting Type Aviation Connector Han 24 Pin 16A 500V

£69.60
£69.60
Tax included.
HARTING Heavy Duty Power Connector, double lock, Han, 23 + PE Way Male & female 16A, 500v, Connector
Availability: 15 in stock
SKU: HART24PIN16A
Tags:
Collections:
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
24 pin connector
£69.60
£69.60

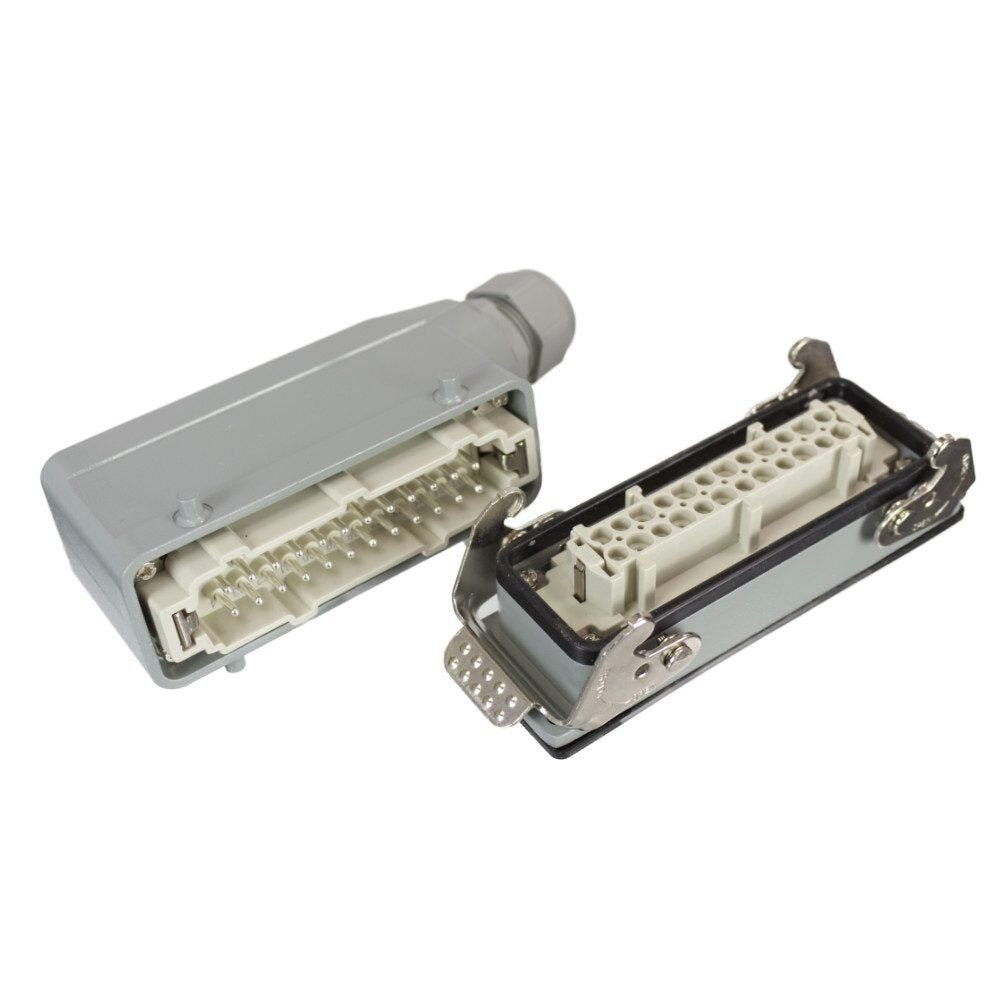

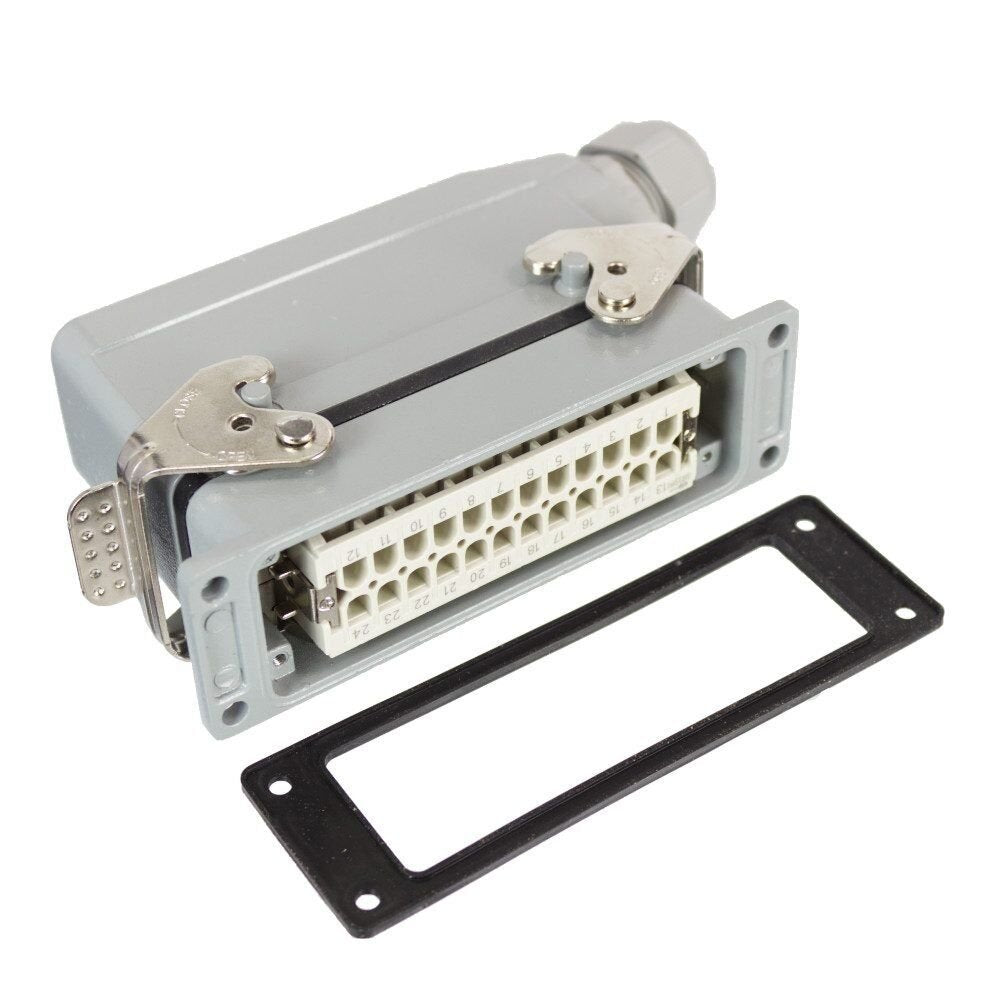

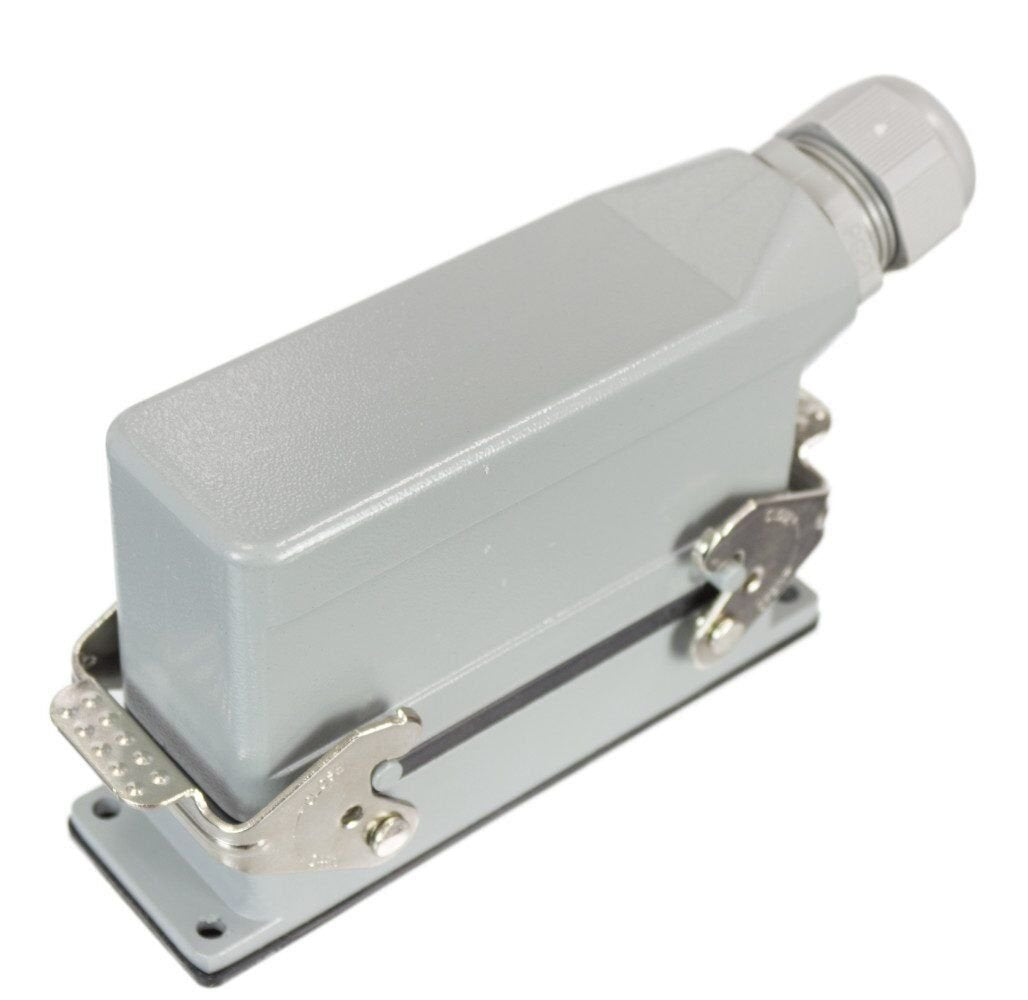

HARTING Heavy Duty Power Connector, double lock, Han, 23 + PE Way Male & female 16A, 500v, Connector
Harting connectors are robust and strong and are the most reliable way of connecting an electrical power supply. Being made from alloy they give protection against crushing. They are fitted with a quick-release latch that ensures the correct amount of pressure and protects the connection from becoming lose. Fitted with a seal ring protect against dust and a level of moisture to ensure long trouble-free working life.

Specification

Type HARTING
Connector type HAN
Connector content male + female
Kit contents plug +plug (male/female)
Number of pins 24
Type of pin configuration 23+PE
Case size 140 x 87 x43mm
Mechanical mounting for cable
Connector variant with cable gland
Spatial orientation angled
Electrical mounting snap-on (Quick Lock)
Gland thread PG21
Gasket material NBR
Cable size 13-16mm
Parameters: Plug Body
  • Working Current: 16A
  • Working Voltage: 400/500V
  • Rated Pulse Voltage: 6KV
  • Pollution Level: 3
  • Isolation Resistance: 10
  • Material: Polycarbonate
  • Operating Temperature Range: -40~+125
  • Flame Retardant Grade (according to UL94): V0
  • Conductor Section: 0.5-6mm²
  • Installation Method: Hole Installation

Connectors
  • Material: Copper
  • Surface Treatment: Silver Plated
  • <;1m ohm
  • Wiring Form: Screw Connection
  • Screw Tightening Torque/Test Torque: 0.25Nm+
  • Wiring Forms: Screw Fixing
Metal Upper Case/Base
  • Material: Cast Aluminum Alloy
  • Surface Treatment: High Temperature Powder Coating
  • Locking Device: Stainless Steel or Iron Galvanized
  • Operating Temperature Range: -40~+125
  • Protection Class: IP65
